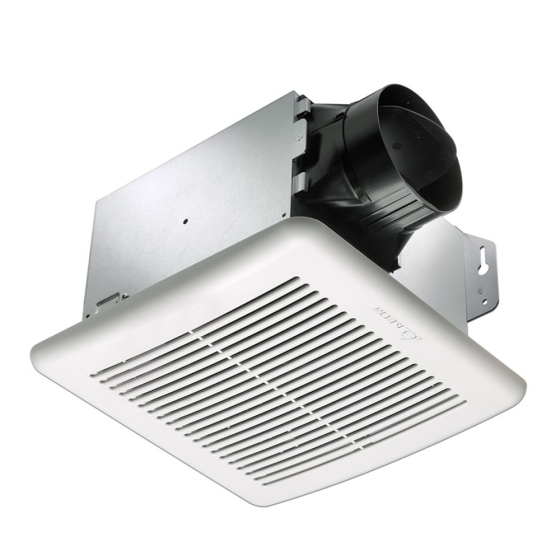

The Delta BreezGreenBuilder GBR80H ENERGY STAR® Certified Humidity Sensing Ventilation Fan marks a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a CFL or LED light option as well.
FEATURES & BENEFITS
• Energy Star® Certified with innovative brushless DC motor technology • Perfectly quiet operation at less than 0.8 Sones • UL approved for ceiling and wall mount installation • Humidity sensor has adjustable relative humidity set-point and triggers full speed operation until moisture is adequately removed • Adjustable humidity set points between ~50% to ~80% RH • Adjustable low speed for continuous operation (0 or 50 CFM options) • UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring • Blue and amber LED indicator lights to show humidity control and full speed modes • Hanger bars included • Airflow (CFM @ 0.1 SP): 80 • Sones: 0.8 • Power Consumption (Watts): 9.7 • Energy Efficiency (CFM/Watts): 8.2 • Current (Amps): 0.22 Max • Power Rating (Vac/Hz): 120/60
DC Motor/Blower • Power rating of 120 volts/60Hz • DC Brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Allows fan to operate in full speed mode or humidity control mode by manual switch • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed (80 CFM). When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0 or 50 CFM) • Built-in soft start function to increase bearings’ life • Automatically powers OFF when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
