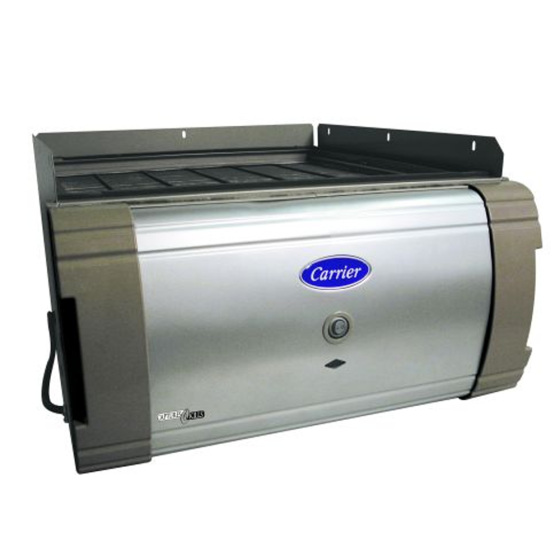

Infinity® Electronic Air Purifier 208/230Vac, 16" x 20", 1,400CFM, (MERV 15)

Item
GAPABXCC1620A01
  • California Prop 65

APPLICATIONS

The Infinity® Air Purifier is designed for use in the return air duct of a forced air heating, cooling, and ventilation system. The GAPABXCC1620 is specifically designed for use in systems with a forced air fan coil and are intended to be powered by 208/230v-60 Hz. The Infinity® Air Purifier both captures and kills airborne viruses, bacteria, mold spores, and allergens. It combines superior filtration efficiency MERV 15, with pathogen-killing technology to deliver maximum air purification. The Infinity® Air Purifier is designed to require minimal maintenance. Maintenance is limited to the replacement of the air purification cartridge and inspection/brush cleaning of the ionization array. Frequency of air purifier cartridge replacement and cleaning of the ionization array may vary depending on ductwork design and local environmental conditions.

PRODUCT DETAILS

• Ultra-high efficiency MERV 15. Captures and kills airborne viruses, bacteria, and mold spores.
• Virtually no cleaning required. Simply change purifier cartridge periodically.
• Three distinct cabinet sizes help to ensure a perfect fit to the bottom and side of most Carrier fan coils.
• Unit can be installed in a horizontal or vertical position, which makes it equally adaptable to horizontal, downflow, or standard upflow applications.
• Power supply is a highly reliable state-of-the-art, solid-state, high-voltage device.
• Heavy-gauge steel cabinet supports up to 400lb when installed beneath a fan coil.
• Model GAPAB Air Purifier is CSA (Canada and US) listed.
• Maximum Airflow (CFM): 1400
• Input Voltage: 208/230Vac
• 60 Hertz
• Single Phase
Replacement Media: GAPCCCAR1620

Electrical
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 25
Exterior Dimensions (D) (inches) 23.000000
Exterior Dimensions (W) (inches) 14.000000
Exterior Dimensions (H) (inches) 19.000000
Shipping Weight (lbs) 25.000000
Specification
Filter Size 16" x 20"
MERV Rating MERV 15
CFM 1,400
