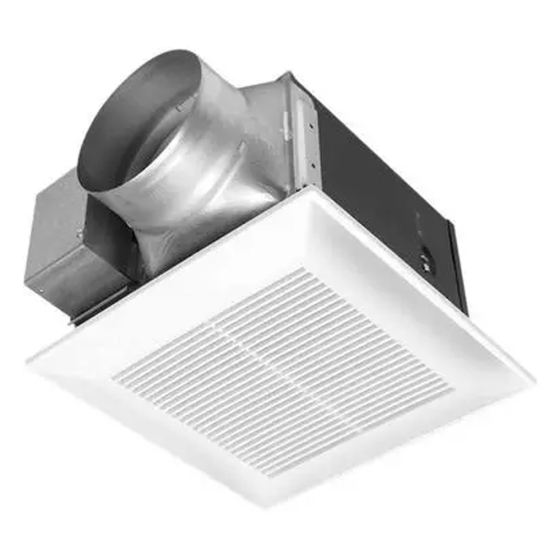

Panasonic WhisperCeiling™ ENERGY STAR® Certified Spot Ventilation Fan 6 in. Round Duct, 190CFM, 0.8 Sones, 120Vac

Item
FV-20VQ3
  • California Prop 65

APPLICATIONS

The Panasonic WhisperCeiling™ FV-20VQ3 Ventilation Fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.

FEATURES & BENEFITS

• Large volume (190) CFM options designed for light commercial applications
• UL listed for tub/shower enclosure when GFCI protected
• Can be used to comply with ASHRAE 62.2, LEED, IAP, EarthCraft, California Title 24 and WA Ventilation Code
• Air Volume Exhaust (CFM): 190 @ 0.1" SP, 145 @ 0.25" SP
• CFM: 190
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
• Current (Amps): 0.34A
• Duct Diameter: 6" Round
• Energy Efficiency (CFM/Watt): 4.6 CFM/W
• ENERGY STAR® Certified: Yes
• Grille Size (in sq.): 15
• Motor Type (AC/DC): AC
• Mounting Opening (in sq.): 12-3/16"
• Noise (Sones): 190 @ 0.1" SP = 0.8, 145 @ 0.25" SP = 1.4
• Power Consumption (Watts): 43.7W
• Power Rating (Vac/Hz): 120/60
• Radiation Damper Available: No
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes

Motor/Blower
• Four–pole totally enclosed condenser motor rated for continuous operation.
• Power Rating shall be 120 volts and 60 Hz.
• Fan shall be UL listed for tub/shower enclosure when used with a GFCI branch circuit wiring.
• Motor equipped with thermal–cutoff fuse.
• Removable with permanently lubricated plug–in motor.

Housing
• Rust proof paint, galvanized steel body.
• 6" Round duct adaptor.
• Built in backdraft damper.
• Expandable extension bracket up to 26".

Grille
• Attractive design using PP material.
• Attaches directly to housing with torsion springs.

Warranty
• ALL Parts: For period of 3 years from the date of the original purchase.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 13.6
Exterior Dimensions (D) (inches) 16.530000
Exterior Dimensions (W) (inches) 12.280000
Exterior Dimensions (H) (inches) 14.060000
Shipping Weight (lbs) 24.000000
Specification
CFM 190
