APPLICATIONS

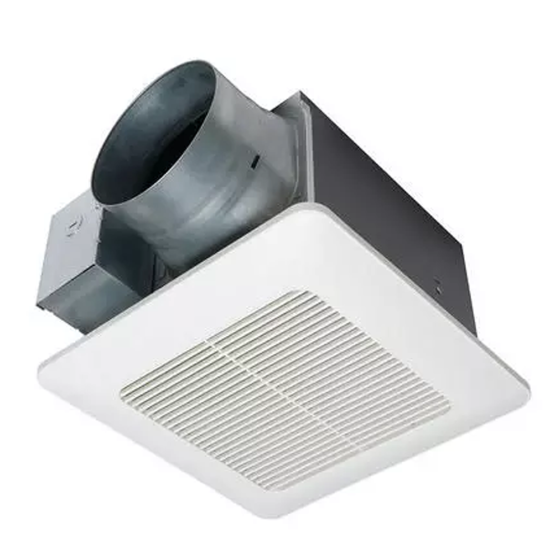

The Panasonic WhisperCeiling® DC™ FV-1115VQ1 Precision Spot Exhaust Fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (110-130-150 CFM). Features an ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.
FEATURES & BENEFITS
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 or 110, 130, 150 CFM models)
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
• Lighted models incorporate one long-life, 10W dimmable LED chip panel with 1W LED night light for warm, energy efficient illumination
• Elegant grille design compliments the aesthetics of any bathroom
• Air Volume (CFM): 150, 152, 130, 131, 110, 110
• California Title 24 Compliant: Yes
• Current (Amps): 0.19, 0.31, 0.16, 0.25, 0.12, 0.20
• Duct Diameter: 6" Round
• Energy Efficiency (CFM/Watt): 12.9, 7.6, 14.7, 8.5, 16.4, 9.2
• Grille Size (in sq.): 13"
• Gross Weight (lbs): 11.2
• MAX. Current (Amps): 0.31
• Mfg in ISO 9001 Certified Facility: Yes
• Motor Type (AC/DC): DC
• Mounting Opening (in sq.): 10-1/2"
• Noise (Sones): 0.3, 0.7, 0.3, 0.5, 0.3, 0.3
• Power Consumption (Watts): 11.8, 20.2, 9.0, 15.7, 6.8, 12.1
• Power Rating (Vac/Hz): 120/60
• Speed (RPM): 1342, 1480, 1016, 1268, 867, 1185, 768, 1097
• Static Pressure: 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
• Thermal Fuse Protection: Yes
• Type of Motor Bearing: Ball
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
• UL tub/Shower Enclosure: Yes
• Washington VIAQ Code: Yes
Motor/Blower
• Enclosed brushless ECM motor technology rated for continuous run.
• Fan ventilation rates shall be manually adjustable for 110-130-150 CFM.
• Power rating shall be 120 volts and 60 Hz.
• Fan shall be UL and cUL listed for tub/shower enclosure when GFCI protected
• Motor equipped with thermal–cutoff fuse.
• Removable with permanently lubricated plug-in motor.
Housing
• 26 gauge Zinc-Aluminum-Magnesium (ZAM) housing.
• Integrated 6" duct adapter.
• Built-in damper reduces back drafting and helps with blower door testing.
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing.
• Articulating and expandable installation bracket up to 24".
Ceiling Radiation Damper
• WhisperCeiling® DC™ is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).
Grille
• Attractive design using Poly Pro material.
• Attaches directly to housing with torsion springs.
Warranty
• ECM Motor: 6 Years from original purchase date.
• ALL Parts: 3 Years from original purchase date.
