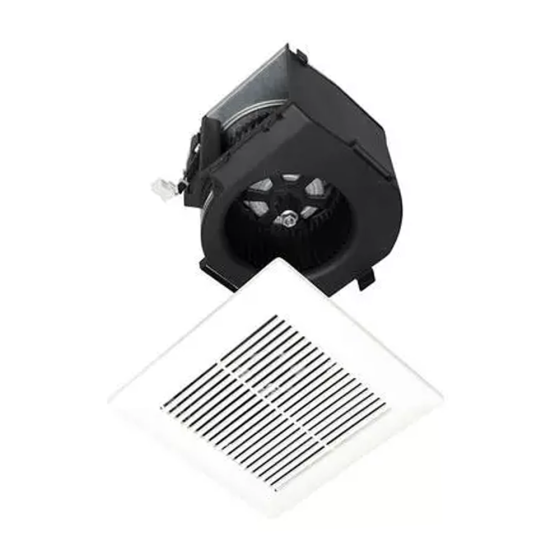

Panasonic EcoVent™ ENERGY STAR® Certified Motor/Blade/Grille Assembly 70 to 90CFM, 1.2 Sones, 120Vac (Multi-Speed)

Item
FV-07VBB1
  • California Prop 65

APPLICATIONS

The Panasonic EcoVent® FV-07VBB1 Motor/Blade/Grille Assembly is used with the Panasonic EcoVent® FV-07VBA1A Ventilation Fan Housing.

FEATURES & BENEFITS

• Advanced Features: Dual speed (Standard/High Speed)
• Air Volume Exhaust (CFM): 70 @ 0.1" SP, 56 @ 0.25" SP, 90 @ 0.1" SP, 75 @ 0.25" SP
• CFM: 70-90
• Other Approved Codes and Standards: ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
• Current (Amps): 70 @ 0.1" SP = 0.15A, 90 @ 0.1" SP = 0.19A,
• Energy Efficiency (CFM/Watt): 70 @ 0.1" SP = 3.5 CFM/W, 90 @ 0.1" SP = 3.8 CFM/W,
• ENERGY STAR® Certified: Yes
• Grille Size (in sq.): 9-1/2"
• Motor Type (AC/DC): AC
• Mounting Opening (in sq.): 7-7/8"
• Mounting Options: Ceiling Mount. Tub/Shower (UL)
• Noise (Sones): 70 @ 0.1" SP = 0.4, 56 @ 0.25" SP = 1.1, 90 @ 0.1" SP = 1.2, 75 @ 0.1" SP = 1.5
• Power Consumption (Watts): 70 @ 0.1" SP = 20.0W, 90 @ 0.1" SP = 24.0W,
• Power Rating (Vac/Hz): 120/60
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes

Motor/Blower
• Four–pole totally enclosed condenser motor rated for continuous run.
• Pick-A-Flow™ airflow selector (70/90 CFM) spot ventilation solution
• Delivers a True Flow rating of 56 CFM at 0.375" static pressure (when set at the 90 CFM setting)
• Power Rating shall be 120 volts and 60 Hz.
• Fan shall be UL and cUL listed for tub/shower enclosure when used with a GFCI protected circuit and used in insulated ceiling
• Junction box and duct adapter comes pre-attached to the housing can
• Motor equipped with thermal cutoff fuse.
• Removable with permanently lubricated plug-in motor.

Grille
• Small, attractive design using PP material.
• Attaches directly to housing with torsion springs.

Warranty
• ALL Parts: For period of 3 years from the date of the original purchase.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 12.35
Exterior Dimensions (D) (inches) 20.900000
Exterior Dimensions (W) (inches) 11.700000
Exterior Dimensions (H) (inches) 11.300000
Shipping Weight (lbs) 25.000000
Specification
CFM 90
