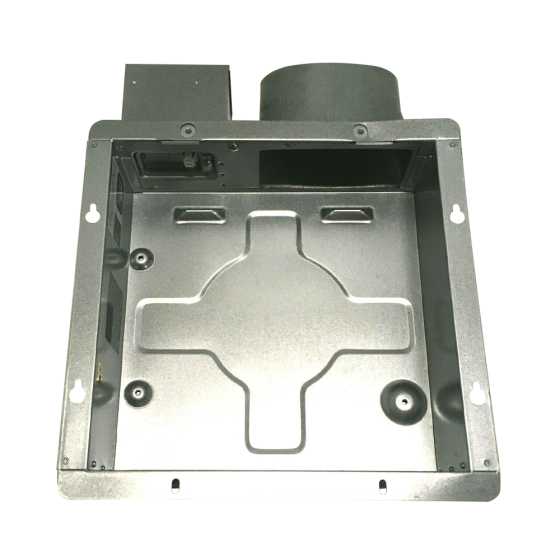

Panasonic WhisperValue® Ventilation Fan Housing 4 in. Oval Duct, 10-1/4 in. x 10-1/4 in. x 3-3/8 in.

Item
FV-0510VSA1
  • California Prop 65

APPLICATIONS

The Panasonic WhisperValue® FV-0510VSA1 Ventilation Fan Housing is used with the Panasonic WhisperValue® FV-0510VSB1 Motor/Blade/Grille Assembly.

FEATURES & BENEFITS

Housing
• 26 gauge galvanized steel body.
• Built-in 4" Oval duct collar. Also compatible with 4" round duct.
• Optional 24 gauge steel, fire code rated 4" oval to 3" round duct adaptor sold separately (Model # FV-VS43R).
• Built in backdraft damper.
• Built-in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing.
• Unique L-shaped bracket simplifies installation and provides strong support.

Ceiling Radiation Damper
• WhisperValue DC is UL listed for use with the Panasonic Ceiling Radiation Damper (Model #: PC-RD05C5, sold separately).

Grille
• Attractive design using Poly Pro material.
• Attaches directly to housing with torsion springs.

Warranty
• ECM Motor: 6 Years from original purchase date.
• ALL Parts: 3 Years from original purchase date.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 6.890000
Exterior Dimensions (W) (inches) 14.250000
Exterior Dimensions (H) (inches) 16.730000
Shipping Weight (lbs) 20.000000
