FEATURES
• GMQ fuse mounts in type HLQ size rejection (size limiting) carrier (prevents overfusing).• HLQ carrier comes with 6” of #18 red insulated solid copper wire attached to the line side.
• Customer inserts a #18 insulated solid copper wire into load side receptacle.
• Size of type GMQ fuses varies with ampere ratings.

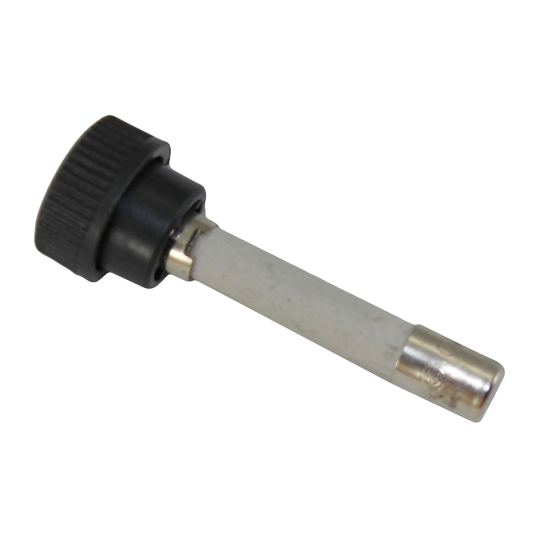

• Fuse and knob are an integral one-piece unit. There are no replacement knobs (caps).
• Units can be panel mounted with a separate steel clip. For the knockout hole, choose #BK/A-104. For the keyhole punch type hole, choose #6374 for panels .043” to .062” thick, or #4909 for panels .030” to .042” thick.
• Do not put tension on line (rear) terminal of fuseholder.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
