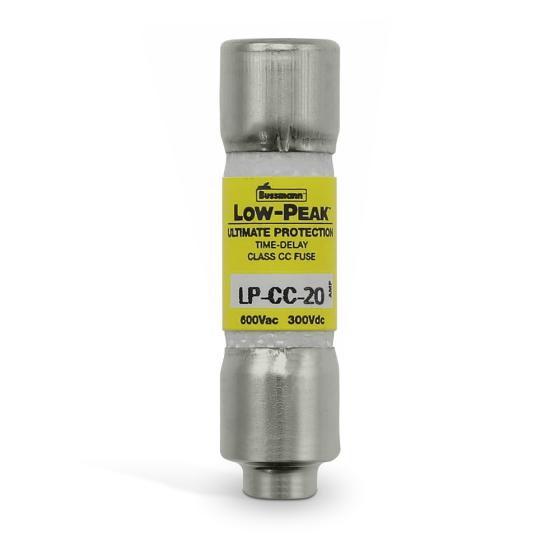

The LP-CC Class time-delay, current-limiting, rejection-type fuse is ideal for use in branch circuit protection, specialized circuits, industrial controls and panels, and in isolated, in-line fuse holders.
FEATURES & BENEFITS
• Voltage Ratings: 600 Vac (or less), 300 Vdc (1/2 to 2-8/10 A and 20-30 A), 150 Vdc (3-15 A) • Amperage Rating: 20 • Internal Resistance Ratings: 200 kA RMS Sym., 20 kA DC • UL Listed Std 248-4, Class CC, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787, RoHS compliant (20-30 A)*, CE • Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses. • Time-delay coupled with Class CC current-limiting response provides close sizing on small motor and relay circuits, and maximum component short-circuit current rating protection. • 200 kA interrupting rating provides high ratings for control circuit locations. • Inventory consolidation of 13/32" x 1-1/2" supplemental fuses reduces SKU investment and minimizes potential for misapplying fuse. • Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit.
