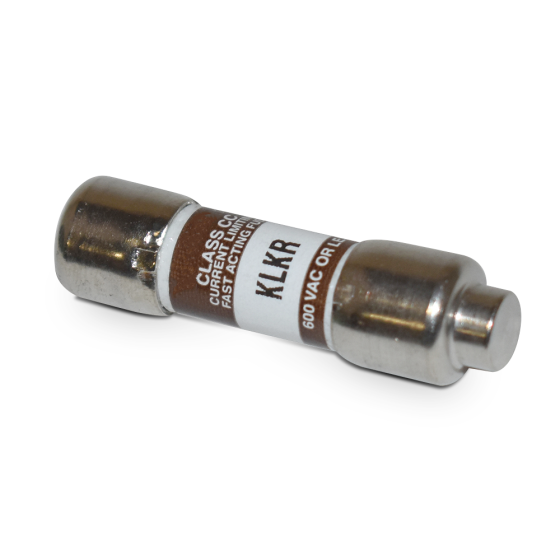

Fast-Acting Fuse 30a, 600Vac (Class CC)

APPLICATIONS

The KLKR Series Class CC fuses are fast-acting fuses intended for general purpose branch circuit protection. Their compact size, fast- acting overload response, and highly current- limiting design make them ideal for use in OEM equipment and control panels.

FEATURES & BENEFITS

• Voltage Rating AC: 600 Vac or less, DC: 300 Vdc
• Ampere Rating: 30
• Interrupting Rating AC: 200 kA rms symmetrical, DC: 20 kA
• Approvals AC: Standard 248-4, Class CC
• UL Listed 1/10-30 A (File: E81895)
• CSA Certified 1/10-30 A (File: LR29862)
• DC: Littelfuse self-certified
• Material Melamine body
• Bronze caps (nickel plated)
• Environmental RoHS Compliant
• Country of Origin Mexico
