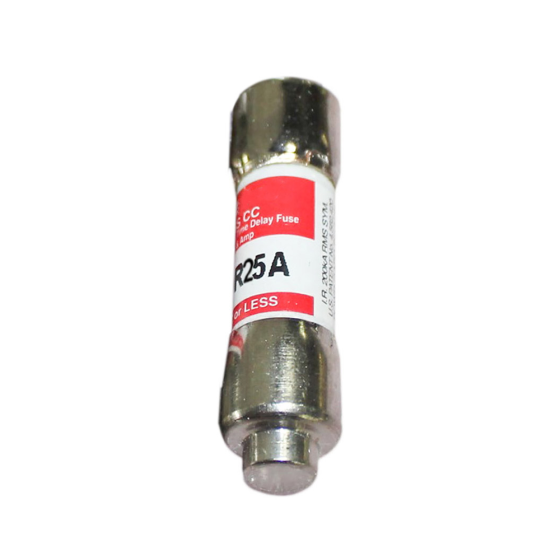

Time-Delay Fuse 25a, 600Vac (Class CC)

APPLICATIONS

The KLDR Series fuses are time-delay fuses designed to protect control transformers, solenoids and similar inductive components with high magnetizing currents during the first half-cycle. They provide excellent protection of motor branch circuits containing IEC or NEMA rated motor controllers or contactors.

FEATURES & BENEFITS

• Voltage Rating AC: 600 Vac or less DC: 300 Vdc
• Ampere Rating: 25
• Interrupting Rating AC: 200 kA rms symmetrical DC: 20 kA
• Approvals AC: Standard 248-4, Class CC
• UL Listed 1/10-30 A (File: E81895)
• CSA Certified 1/10-30 A (File: LR29862)
• DC: Littelfuse self-certified
• Material Melamine body
• Bronze caps (nickel plated)
• Environmental RoHS Compliant
• Country of Origin Mexico
