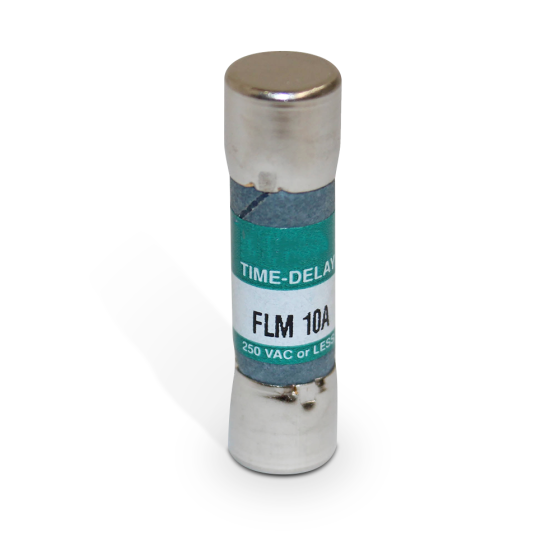

Time-Delay Fuse 10a, 250V
APPLICATIONS
The FLM Series fuses are ideal for protecting circuits with high in-rush. Especially suited for supplemental protection of small motors.
FEATURES & BENEFITS
• Voltage Ratings: 250Vac, 125Vdc self-certified @ 10 kA
• Amperage Rating: 10a
• Interrupting Ratings: 10 kA @ 250 Vac
• Approvals UL Listed (File: E10480)
• CSA Certified (029862_0_000)
• Dimensions L 38.1mm (1 1/2”)
• D 10.31mm (13/32”)
Safety Standards |
California Prop 65 |
Yes |
Specification |
Amp Rating |
10 |
Weights and Dimensions |
Operating Weight (lbs) |
0.2 |
Exterior Dimensions (D) (inches) |
1.000000 |
Exterior Dimensions (W) (inches) |
1.000000 |
Exterior Dimensions (H) (inches) |
1.000000 |
Shipping Weight (lbs) |
0.200000 |
