FrostGuard Freeze Protection Plug-in Kit, 120Vac, 12'

FEATURES

nVent RAYCHEM FrostGuard heating cables are designed for pipe freeze protection and roof and gutter de-icing in residential and commercial applications. FrostGuard features nVent RAYCHEM self-regulating cable technology and is approved for use in non-hazardous areas.

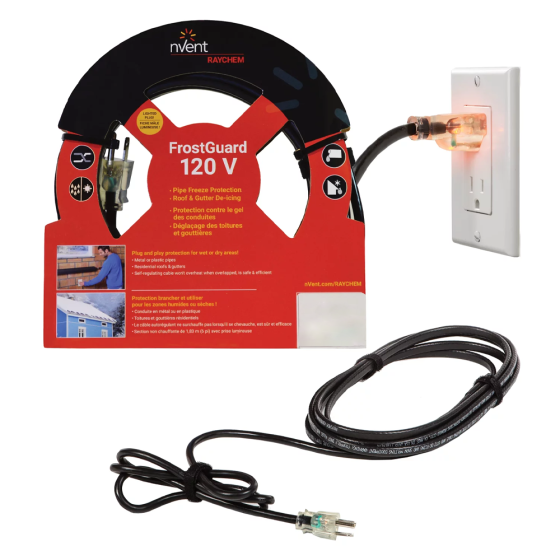

The 120 V FrostGuard cable is a pre-assembled 12-foot heating cable. 120 V cables offer plug-and-play installation thanks to an integrated 6 foot power cord and a lighted, grounded, 3-prong plug that indicates when the cable has power. 120 V FrostGuard is ideal for roof and gutter de-icing and for pipe freeze protection on metal or plastic pipes up to 2-1/2 inches in diameter.

• Simple to design: 120 V version in 12ft lengths each with a 6 ft power cord and 3-prong, grounded, lighted plug to show the system is on

• Easy to install: pre-assembled with a plug and cold lead to avoid the need for connection by an electrician

• Energy efficient and safe: self-regulating cable, no overheating possible even when overlapped or closely spaced

• Reliable during long life: 2 year product warranty available, maintenance free

SPECIFICATIONS

• Nominal Height: 0.24 in

• Nominal Width: 0.45 in

• Min Installation Temperature: 5 °F

• Cold Lead Length: 6 ft

• Nominal Voltage: 120 V

• Max Continuous Exposure Temperature, Power On: 150 °F

• Color: Black

• Ground Path Type: Braid

• Heating Cable Technology: Self-Regulating

• Nominal Power Output @ 40°F, 120V: 6 W/ft

• Nominal Power Output @ 40°F, 240V: 6 W/ft

• Nominal Power Output, In Ice or Snow @ 32°F, 120V: 8 W/ft

• Length: 12 ft

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	7.000000
Shipping Weight (lbs)	2.000000

Resources

FG1-12P_Specifications.pdf
