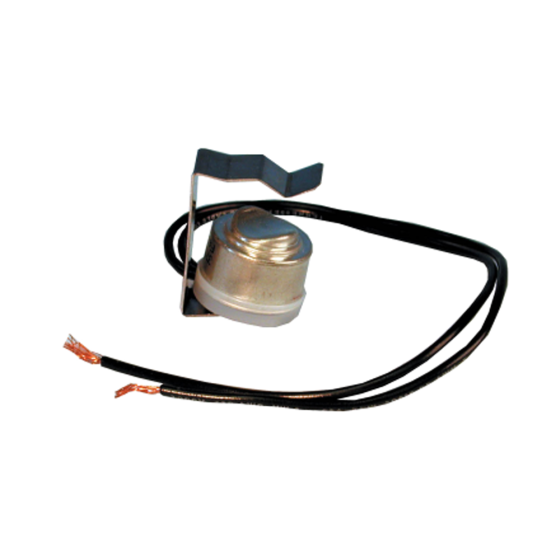

APPLICATIONS
Protects air conditioning evaporator coils from freezing.
FEATURES & BENEFITS
• Open 35°, Close 50°
• Fits up to ⅞" O.D. tubing
• Replaces: Trol-A-Temp® FPC
• Rated 10A@120V, 5A @ 240V
• 12" leads
• Locked Rotor Amps: 34.8A
• Full Load Amps: 5.8A
• Amps @ 250V: 5A
• Amps @ 120V: 10A
• Switching: SPST
• Differential: 15°F
• Closing Temperature: 50°F
• Opening Temperature: 35°F
CROSS REFERENCE
• Electrolux® - 5303279149
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 0.500000 |
