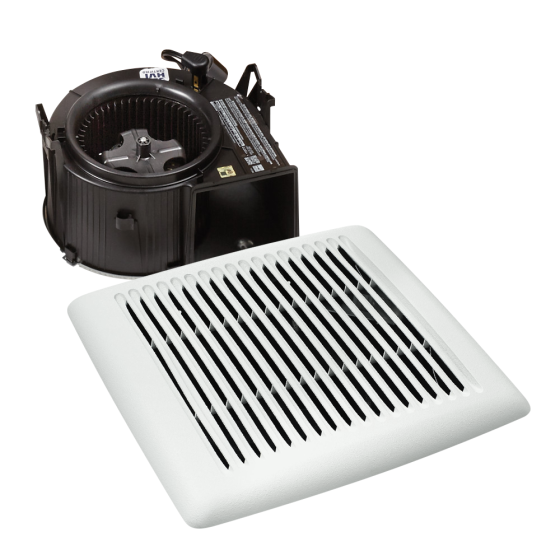

Broan® Flex™ Motor/Blade/Grille Assembly 80CFM, 1.2 Sones, 120Vac (Wall Mountable)

Item
AE80BF1
  • California Prop 65

APPLICATIONS

This Broan® 80CFM Ventilation Fan Motor/Blade/Grille Assembly is used with A000HFKT and A000HFNF Broan® Ventilation Fan Housings. Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex Series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor.

FEATURES & BENEFITS

• CFM (@ 0.1 SP): 78
• ENERGY STAR® certified: Yes
• Grille Length: 11.5
• Grille Width: 12
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Recommended Room Size (Sq Ft): 75
• Rated Amps: 0.3
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Minimum Construction Space Required: 2" x 6"
• Manufacturer Warranty: 3 Years

BLOWER:
• Plug-in, permanently lubricated motor - engineered for continuous operation
• Dynamically balanced centrifugal blower wheel for quiet, efficient performance
• Low RPM for quiet operation

GRILLE:
• Polymeric construction
• Innovative design - the result of extensive research with designers and consumers

CONTROLS (Purchase separately):
• Refer to Broan’s catalog for a complete line of accessories to effectively adapt these fans to your construction requirements.

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 12
Exterior Dimensions (D) (inches) 12.000000
Exterior Dimensions (W) (inches) 12.000000
Exterior Dimensions (H) (inches) 7.000000
Shipping Weight (lbs) 12.000000
Specification
CFM 80
