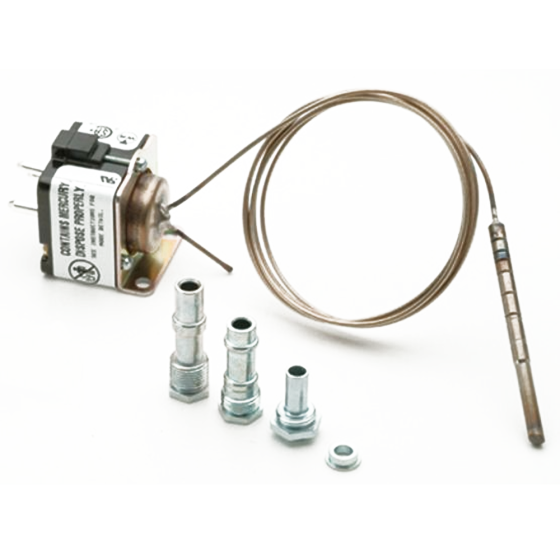

Cycle-Pilot Mercury Flame Sensor

Item
3098-156
  • California Prop 65

APPLICATIONS

• Cycle Pilot Mercury Flame Sensors designed for 36C84 and 36C94 gas valves include adapters for competitive burners.
• Replaces bulb styles #17 or #18.

FEATURES & BENEFITS

• Bulb style designed to fit original equipment applications.
• Adapter fittings for competitive burners included.
• Maximum Temperature: 1450 degrees F at the tip .
• Approvals: CSA Approved
• Capillary Length: 48"
• Panel Type: E
• Bulb Style: #20

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 5.000000
Exterior Dimensions (W) (inches) 3.000000
Exterior Dimensions (H) (inches) 2.000000
Shipping Weight (lbs) 1.000000
