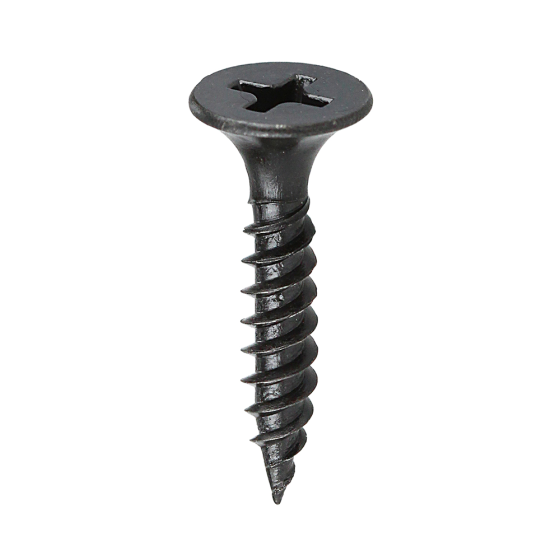

Phillips Head Fine Thread Drywall Screw 1-5/8 in. L, #6
Item
DWSBX6158
APPLICATIONS
Fine Thread Drywall Screws are used to secure drywall to 20-25 gauge steel. Their sharp, self-piercing point allows for easy penetration, and their fine threads provide a strong hold. They feature a countersunk bugle head that tapers down into the drywall after installation to provide a clean, finished look. They are manufactured to the ASTM C1002 standard and are finished in a black phosphate coating.
FEATURES & BENEFITS
• Drive Type: Phillips
• Head Type: Bugle
• Thread Type: DWF
• Point Type: Sharp
• Size: #6 x 1-5/8''
• Dia./Thread Size: #6
• Head Diameter: .330'' - .315''
• Length (in): 1-5/8''
• Head Height: Max 0.032''
• Thread Pitch/Thread Per Inch: 18
• Driver Size: #2
• Material: Carbon Steel
• Finish: Black Oxide
Specification | |
---|---|
Length | 1-5/8" | Threads Per Inch | 18 | Thread Size | #6 | Head | Phillips | Point | Tapered Point |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 5.000000 |
