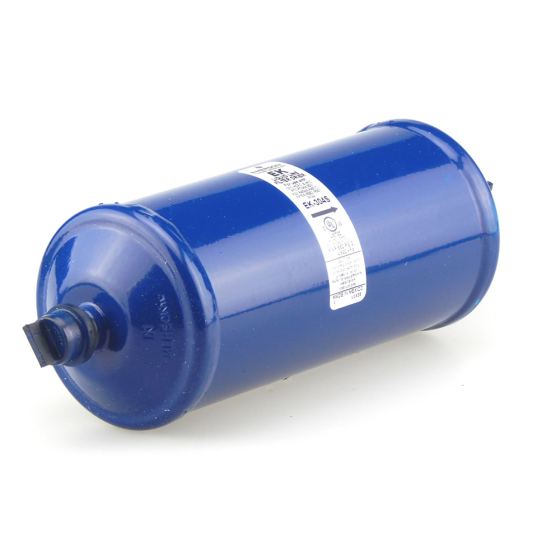

Liquid Line Filter Drier 1/2" ODF 30cu. in.
Item
EK304S
PRODUCT DETAILS
The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration.
The EK is a premium universal replacement liquid line filter drier for CFC, HCFC and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.
FEATURES & BENEFITS
• Filtration first for more effective use of surface area of desiccant.• High moisture and acid removal capacity.
• Solid copper connections.
• Corrosion resistant epoxy powder paint finish.
• Shock resistant steel shell construction.
• Desiccant blend - optimized for high water capacity and acid capacity
• Filtration: 20 microns
• Maximum working pressure: 680 psig
• UL/CUL file number: SA 3124
• Connection Inlet Size: 1/2" ODF
• Connection Outlet Size: 1/2" ODF
• Desiccant Volume: 30cu. in.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2.2 | Exterior Dimensions (D) (inches) | 11.300000 | Exterior Dimensions (W) (inches) | 3.400000 | Exterior Dimensions (H) (inches) | 3.300000 | Shipping Weight (lbs) | 2.200000 |
