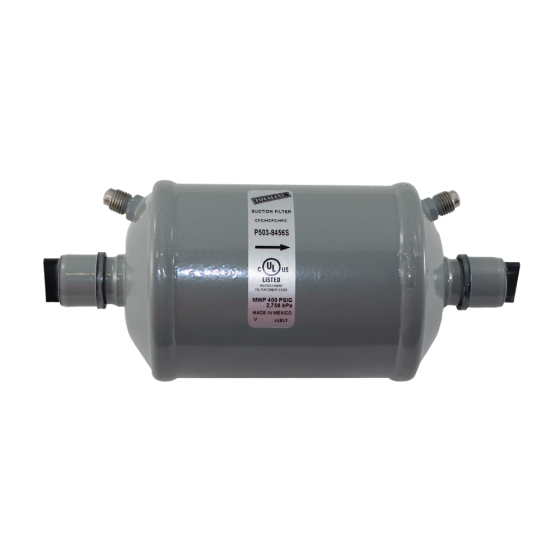

Totaline Suction Line Filter Drier 3/4" ODF 35cu. in. (Beaded Core)
Item
P503-8456S
Service Temporarily Unavailable
The server is temporarily unable to service your request due to maintenance downtime or capacity problems. Please try again later.
PRODUCT DETAILS
Premium suction line filter drier for moisture, acid & contaminant removal.
For use with CFC, HCFC, and HFC refrigerants.
Totaline’s P503-8 Series is a high capacity suction line filter drier that incorporates beaded desiccant plus a filter.
FEATURES & BENEFITS
• Solid copper fittings.• Dual Access Valves.
• Corrosion Resistant Paint Finish.
• High Filtration Capacity.
• Filtration: 40 microns
• Maximum Working Pressure: 500 psig
• UL/CUL File Number: SA3124
• Desiccant Volume: 35cu. in.
• Connection Inlet Size: 3/4" ODF
• Connection Outlet Size: 3/4" ODF
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 2.000000 |
