Fieldpiece® SMAN Wireless 4-Valve Manifold

Item
SM480V
  • California Prop 65

FEATURES

Meet the new heart of your job.

Find your nearest distributor to purchase yours today.

Super rugged construction
Data logging
Temperature compensated system tightness test
Sends and receives wireless readings
Protected thermocouple jacks for pipe and outdoor temps
R32 ready
Water resistant (IP54)
A2L Compatible

Designed for Performance
Knowledge, power and experience are packed into the SMAN® Refrigerant 4-valve Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece’s laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.

From the extremely rugged overmold casing, reinforced hook, and hermetically sealed sight glass to the wireless capabilities, data logging, and tightness test, the SM480V is built so you can do your job easier, faster, and better.

Simply Strong
The SM480V 4-valve Manifold is simply strong. The heavy-duty casing, reinforced hook, water resistance, impact resistant screen, strategically placed thermocouple ports, and hermetically sealed sigSM480Vht glass, all ensure the SMANs are ready to withstand the rigors of field use.

Packed with Knowledge
The SM480V is designed to work the way you do with advanced features to streamline your job and provide your customers with the answers they need.

Packed with Knowledge
The SM480V is designed to work the way you do with advanced features to streamline your job and provide your customers with the answers they need.

Data Logging
• Stores up to 9 jobs internally
• Easy download via USB port
• Displays % free storage space before logging begins
• Logs up to 7 days (168 continuous hours)

Tightness Test
• Check for leaks after repairs or installations
• View pressure differential over time
• Timer tracks duration of test
• Temperature compensated with SL temp to avoid false positives

Customizable
• Adjust auto power off duration
• Adjust back light duration
• Set high and low vacuum alarms
• Select each unit of measurement individually

Receives Wireless Measurements
Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SR47 Refrigerant Scale. Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 1000’ away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.

• View measurements on SMAN and/or in Job Link App
• Monitor and record refrigerant weight
• Direct 1000’ wireless range (no transmitter needed)

SPECIFICATIONS

• Display: LCD (5 inches diagonal)
• Backlight: Blue (adjustable duration)
• Low Battery Indication: is displayed when the battery voltage drops below the operating level.
• Auto Power Off: 30 minutes of inactivity (adjustable)
• Maximum Manifold Pressure: 800 Psig (5500 kPa)
• Battery Type: 6 x AA alkaline
• Battery Life: 350 hours typical (without vacuum, backlight, and wireless)
• Radio Frequency: 2.4 GHz
• Wireless Range: 1000 feet (305 meters) line of sight – distance decreases through obstructions
• Data Port: Micro USB (for extracting data logs or updating firmware)
• Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
• Storage Environment: -4°F to 140°F (-20°C to 60°C) at <80% RH (with battery removed)
• Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C), per 1.8°F (32°F to 64°F, 82°F to 122°F)
• Weight: 4.03 lbs (1.83 kg)
• Water Resistant: Designed to IP54

INCLUDES

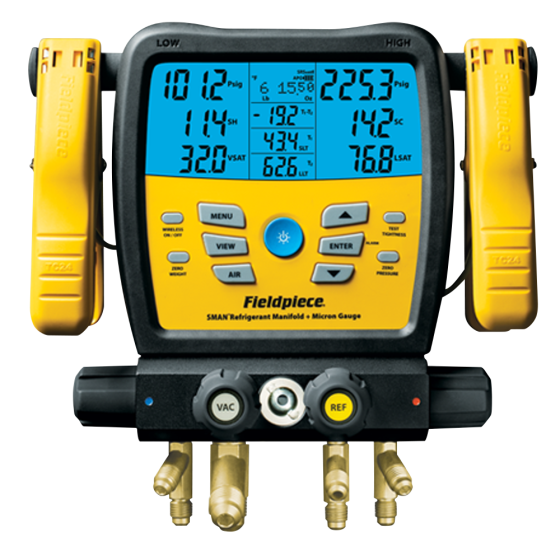

• SM480V 4-port Manifold
• (2) TC24 Wired Type-K Pipe Clamp Thermocouple
• (1) ATA1 Type-K Bead Thermocouple with Clip
• (1) ANC11 Padded Drawstring Case
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 15
Exterior Dimensions (D) (inches) 5.000000
Exterior Dimensions (W) (inches) 10.000000
Exterior Dimensions (H) (inches) 9.000000
Shipping Weight (lbs) 15.000000
