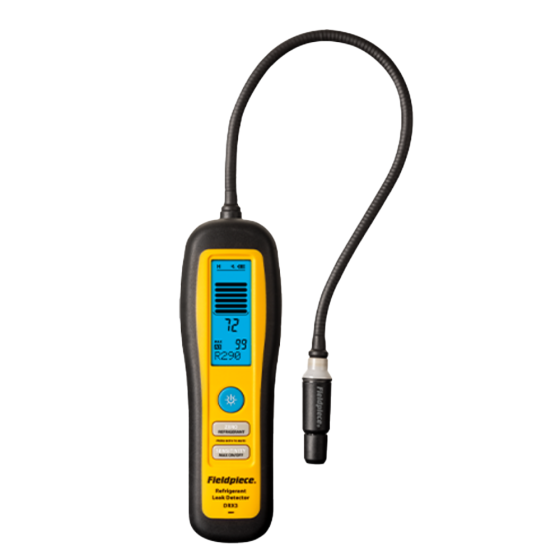

Fieldpiece® Refrigerant and Combustible Gas Leak Detector (A2L Compatible)

FEATURES

Travel light with one tool, one sensor, that quickly and accurately detects HC, HFC, HCFC, CFC, HFO, H2/N2 (Tracer Gas) and blend refrigerants, as well as heating gases. The DRX3 is designed for performance and safety, complying with ATEX Zone 2 and Class I, division 2 hazardous location requirements.

• Detects A3, A2L, A1 refrigerants and combustible gases

• Accurate and field-replaceable, heated diode sensor

• Long-life, field-replaceable batteries

• Auto and manual zero modes

• High, medium and low sensitivity settings

• Job Link® System App connected

The lightweight, rugged DRX3 helps you locate system leaks quickly with multiple visual and audio feedback indicators that change with leak intensity:

• Flashing LED at probe tip

• Loud, audible alarm

• Graphical and numerical display

• Live in the Job Link System App

SPECIFICATIONS

• Sensor Type: Heated diode

• Sensor Life: 300 hours typical

• Sensitivity Levels: High, Medium, Low (selectable)

• Maximum Sensitivity: 1g/yr (0.03 oz/yr), stationary; 3g/yr (0.1 oz/yr), in motion

• Detection Feedback: Flashing LED, LCD bar graph and digits, audible beep, Job Link® app

• Refrigerants: HC, HFC, HCFC, CFC, HFO, H2/N2 (Tracer Gas: 5% Hydrogen, 95% Nitrogen), and blends

• Heating Gases: Natural Gas, Propane, Butane, Methane

• For Use With: A3 (R-290, R-600a, R-600, R-50, R-1270), A2L (Including R-32, R-454B, R-1234yf), and A1 refrigerants

• Not For Use With: R-702, R-717, R-744

• Safety Compliance: ATEX Zone 2(II 3 G Ex ic IIA T2 Gc); Class I, Division 2, Group D, T2 Hazardous Locations

• Operating Environment: -20°C to 50°C (-4°F to 122°F); < 95% RH (non-condensing)

• Battery Type: 4x Replaceable AA Lithium Iron Disulfide (To maintain ATEX and CID2 compliance, use 4x Energizer L91 AA batteries.)

• Battery Capacity: 1.5 VDC (nominal) 3500 mAh

• Battery Life: 60 hours typical

• Auto Power Off: 10 minutes without detection or button press

• Radio Frequency: 2.4 GHz

• Wireless Range: Up to 200 meters (656 feet) line of sight

• Storage Temperature: -20°C to 60°C (-4°F to 140°F); < 95% RH

• Weight: 442g (15.6 oz) with Batteries Installed

• Water Resistance: IP54 Main Body

• US Patents: www.fieldpiece.com/patents

INCLUDES

• (1) Heated Diode Refrigerant Leak Detector – DRX3

• (1) Blow-Molded Case

• (1) Heated Diode Sensor – RXA3

Specifications

Specification
A2L Compatible	Yes

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	10.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	4.000000
Shipping Weight (lbs)	5.000000

Resources

DRX3_Manual.pdf
