Fieldpiece® Stick Style Multimeter

APPLICATIONS

You’re really going to like the HS33 manual ranging multimeter. That’s because we designed it to include all the tests you use every day. We’re talking voltage, microamps, capacitance and temperature. Since it’s part of the HS30 series, the HS33 accepts all our accessory heads. Plus, because it’s from Fieldpiece, you know it’s tough enough to handle anything you’ll face out there.

We added a magnetic hanger to make it easy to attach to metal surfaces, and the detachable silicone test leads and alligator clip make remote and one-handed testing a snap. The HS33 also has a host of built-in safety features as well as excellent temperature compensation and capacitance ranges.

FEATURES & BENEFITS

• Non-contact voltage
• High voltage and continuity indicators
• Capacitance
• Min/Max
• Temperature
• Rugged ABS case with rubberized bumpers
• Built-in magnetic hanger allows you to test with one hand or no hands
• Built-in lead storage
• Ergonomic shape fits naturally in your hand
• Auto power-off (APO) to conserve battery life
• Display: 3½ digit liquid crystal display (LCD) with a maximum reading of 1999.
• Overrange: "OL" mark indication.
• Auto power off: 60 minutes.
• Operating environment: 32 to 122°F (0 to 50°C) at <70% R.H.
• Storage temperature: -4 to 140°F (-20 to 60°C), 0 to 80% R.H. with battery removed.
• Accuracy: Specifications good in ambient conditions of 73°F ±9°F (23°C ±5°C), <75% relative humidity.
• Temperature Coefficient: 0.1×(specified accuracy) per °F/°C. (32 to 64°F (0 to 18°C), 82 to 122°F (28 to 50°C)).
• Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
• Battery life: 300 hours typical with alkaline.

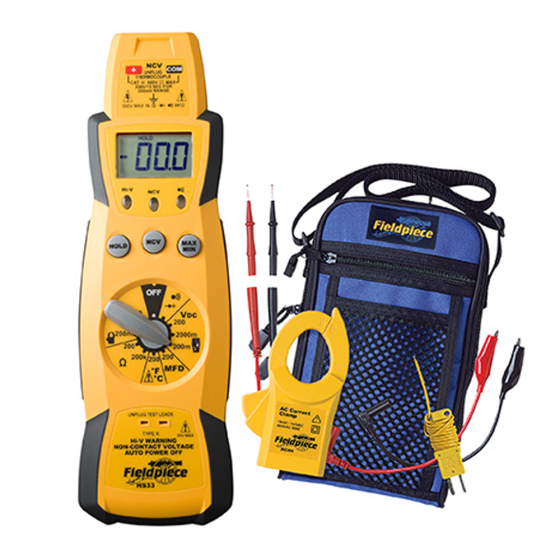

• Accessories: One pair test leads, one pair alligator clips, k-type thermocouple (HS33), 9V battery (installed), and operating instructions.
• Safety: UL, CE, Cat III 600V, UL3111, IEC/EN61010-1, C-Tick certified.
