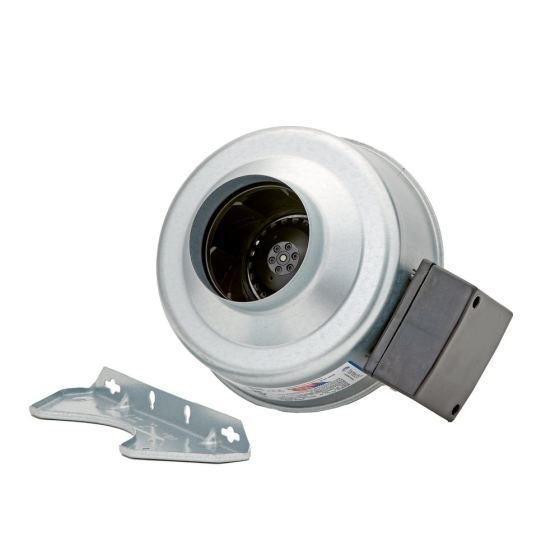

Fantech® Inline Duct Fan 4 in. Round Duct, 100CFM, 120Vac

APPLICATIONS

The Fantech® FG4 Inline Duct Fan is for exhaust or supply air; ideal for commercial and residential ventilation applications.

With the motor in the airstream, the FG4 series fan provides constant dissipation of heat build-up that gives the fan first-in-class longevity and reliability. The fan’s motor bearings are permanently sealed and self-lubricating for maintenance-free life.

The housing is manufactured from a two-piece stamped, galvanized construction. The unique, folded seam procedure by Fantech joins the two halves to give the fan a first-in-class, airtight seal. The airtight casing allows installation in duct connections and in wet room applications to be possible.

Easy installation and reduced maintenance requirements ensure you stay within your budget and you finish your project on your time.

FEATURES & BENEFITS

• Durable, leak-free, low noise operation
• Suitable for indoor installations
• Mount the fan at any angle/direction within the ductwork
• Built-in thermal overload protection with automatic reset
• Mounting bracket and hardware included
• ENERGY STAR® listed
• Five-year factory warranty
• Voltage (nominal): 120Vac
• Frequency: 60Hz
• Phases: 1
• Input Power: 20W
• Input current: 0.18A
• Impeller speed: 2,886RPM
• Rated Airflow (@ 0.2 SP): 100CFM
• Maximum Airflow: 139CFM
• Temperature of transported air max: 140° F
• Max temperature of transported air, when speed controlled: 140° F
• Enclosure class, motor: IP44
• Insulation class: B
• Duct dimension; Circular, inlet: 4 in.
• Duct dimension; Circular, outlet: 4 in.
• Weight: 4.6 lbs
• Duct connection type: Round
