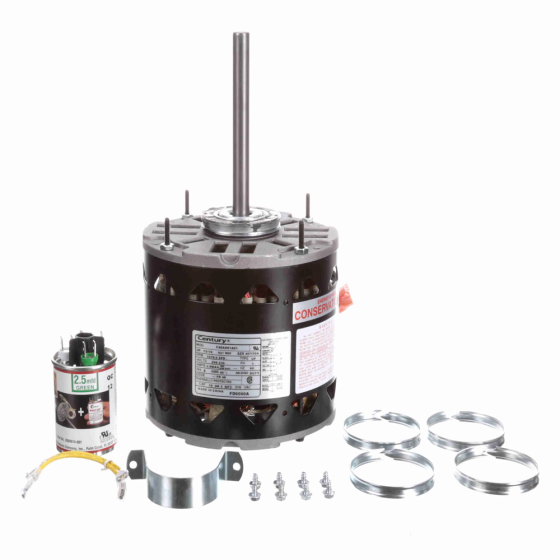

Century® MasterFit Pro® Multi- HP Direct Drive Blower Motor 1/6-1/2 HP, 1075 RPM, 208/230Vac, 3.9A, 5/10µF/370Vac, 4 Speed, 40°C (PSC)
Item
FD6000A
PRODUCT DETAILS
• Thermally Protected
• 36" Leads with Quick Connect Terminals
• Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/6-1/2
• RPM: 1075
• Number of Speeds: 4
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 3.9
• Capacitor: 5/10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 5.0
| Specification | |
|---|---|
| Ambient Temperature | 40 °C | Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1/6 - 1/2 | Motor Type | PSC | Mounting Type | Thru Bolt/Mounting Holes/Belly Band | Number of Speeds | 4 | RPM | 1075 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 3.9 | FLA | 3.9 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 20.000000 |
