APC Sampling Tubes for APC Duct Detectors

Item
FASTTUBE
  • California Prop 65

FEATURES

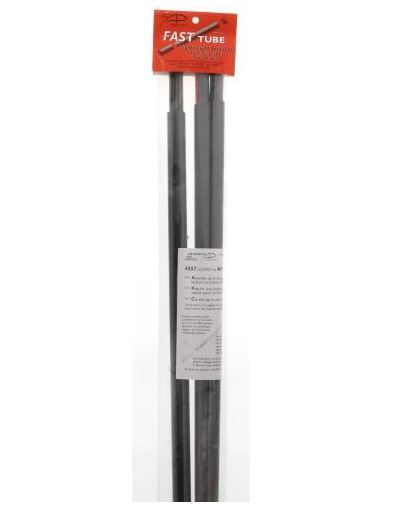

FAST TUBEs are modular sectional sampling tubes, sold as a hanging bag of three 24″ sections. Perfect for the installer unsure of the size of tube required for the duct smoke detector Application.

FAST TUBE Sampling Tubes are innovative, lightweight sectional air sampling tubes. Easily stored, quickly assembled to length, and UL-listed to perform as intended with all APC-brand duct detectors. Leftover sections can be saved for future use.

  • • The FAST TUBES are compatible with all APC Duct Detectors: SL, SM, RT Series.
  • • Lightweight material means lower freight cost, standard size cartons are less prone to damage in transit.
  • • Conveniently bagged with a hang tag for display adjacent to the detectors.
  • • One pack of FAST TUBES will fit duct widths up to 8ft, extra sections can be saved and/or added to longer assemblies for wider ducts.
  • • The FAST TUBE assemblies are fit to APC duct detectors using the connector supplied with every detector with the mounting hardware.

  • Key Benefits
  • • Designed and Manufactured in the USA.

  • Mechanical
  • • Weight: 1lbs
  • • Color: Grey
  • • Materials Housing: Polycarbonate
  • • Product Length: 838.2mm
  • • Product Width: 63.5mm
  • • Product Depth: 63.5mm
  • • Sampling Pipe Length (Max): 6ft
  • • Sampling Pipe Outer Diameter: 18mm
  • • Sampling Pipe Inner Diameter: 15mm
  • Safety Standards
    California Prop 65 Yes
    Hazardous Material No
    Weights and Dimensions
    Operating Weight (lbs) 6.7
    Exterior Dimensions (D) (inches) 4.000000
    Exterior Dimensions (W) (inches) 4.000000
    Exterior Dimensions (H) (inches) 3.000000
    Shipping Weight (lbs) 7.000000
