APPLICATIONS

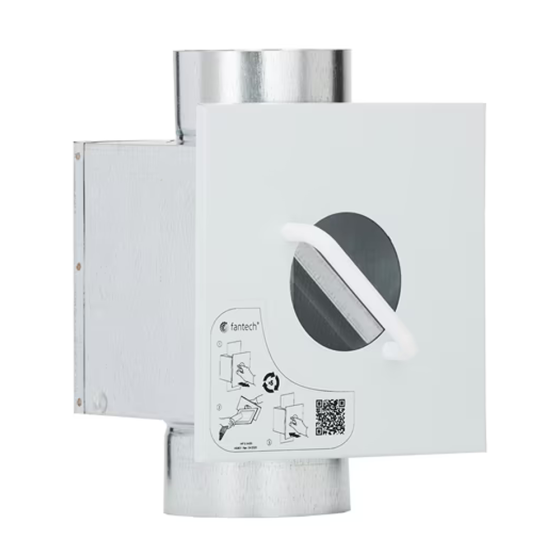

Clothes dryer lint is combustible. Given a right condition, it can self-ignite. The lint trap DBLT 4W installed on the exhaust duct helps reduce the risk of fire.
FEATURES & BENEFITS
• Reduces lint accumulation in the ductwork and dryer vent
• Minimizes the risk of a dryer fire
• Suitable for a 4” duct
• Not intended to use without a DEDPV or booster fan

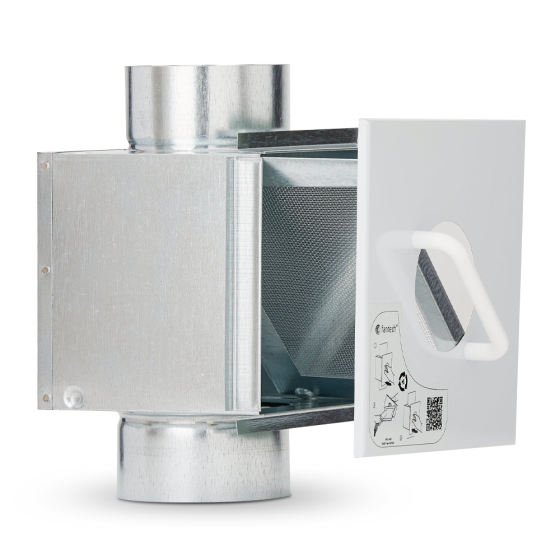

• The lint trap box is equipped with a screen that filters the air that feeds into the dryer exhaust fan. The screen catches any airborne lint in the ductwork that isn't caught by the dryer's lint screen. The less lint accumulation, the better your dryer performs.
• The lint trap DBLT 4W is made of galvanized metal sheet and fits a 4 inch duct. This lint trap must be used when the duct length between the dryer and exhaust fan is between 5 and 15 linear (not equivalent) feet.
| Specification | |
|---|---|
| Fitting Type | Boxes | Fitting Size | 4" | Fitting Sub Type | Lint Traps |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 3.000000 |
