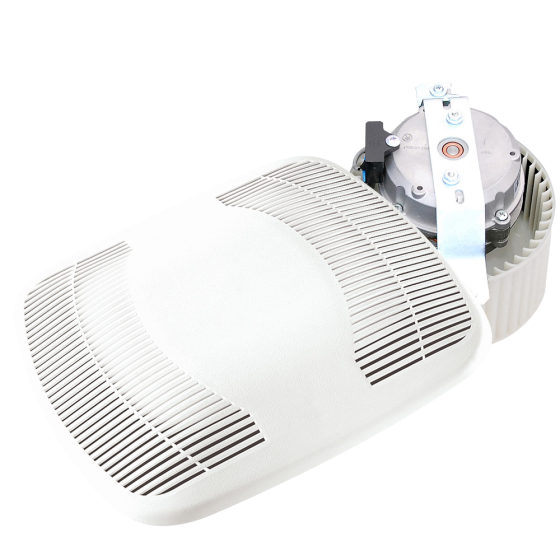

This Air King® Ventilation Fan Motor/Blade/Grille Assembly is used with BFQHSG Ventilation Fan housings (BFG80 Series).
FEATURES & BENEFITS
• Easily installs using the SNAP-IN Mounting System. • UL listed for installation over a tub or shower on a GFCI circuit. • CFM @ .1 SP: 80 • Sones @ .1 SP: 2.0 • Sound Level: Quiet • Effective Ventilation Area: 80 to 100 sq. ft. • ASHRAE 62.2 Ventilation: Local • ENERGY STAR® certified: No • Can be used to Comply with California Title 24 requirements: No • CALGreen: No • Mounting: SNAP-IN Bracket • Blower Wheel: One-piece polymeric wheel 5-1/8" diameter, 2-3/8 " wide, with 48 fins. • Motor: Heavy duty, permanently split capacitor, plug-in, 4 pole motor, lifetime lubrication, thermally protected, suitable for continuous operation. • Voltage Rating: 120 volts, 60 hz. • Ventilating Area: For bathrooms up to 80 sq. ft. For other rooms up to 100 sq. ft.
