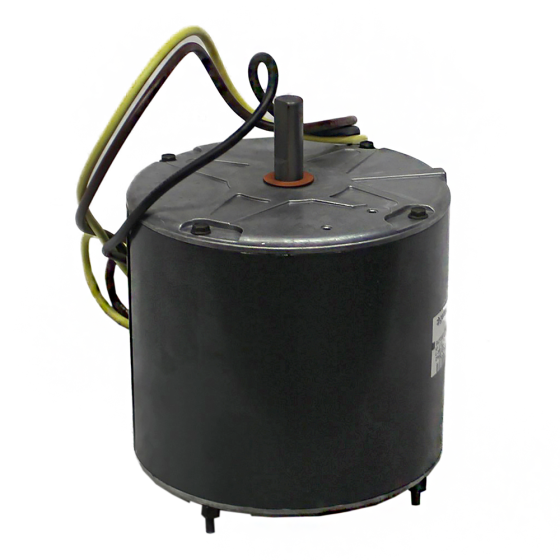

Condenser Fan Motor 1/12HP, 800RPM, 208/230Vac, 5µF/370Vac, 1 Speed, (PSC)
Item
HC32GR236
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/12
• RPM: 800
• Number of Speeds: 1
• Rotation: Clockwise
• Voltage: 208/230Vac
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 39
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 1.42
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 39 | Motor HP | 1/12 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CW | RPM | 800 | Shaft Diameter | 0.50 | Shaft Length | 1.42 |
| Electrical | |
|---|---|
| Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 14.5 | Exterior Dimensions (D) (inches) | 6.800000 | Exterior Dimensions (W) (inches) | 10.300000 | Exterior Dimensions (H) (inches) | 7.200000 | Shipping Weight (lbs) | 14.500000 |
