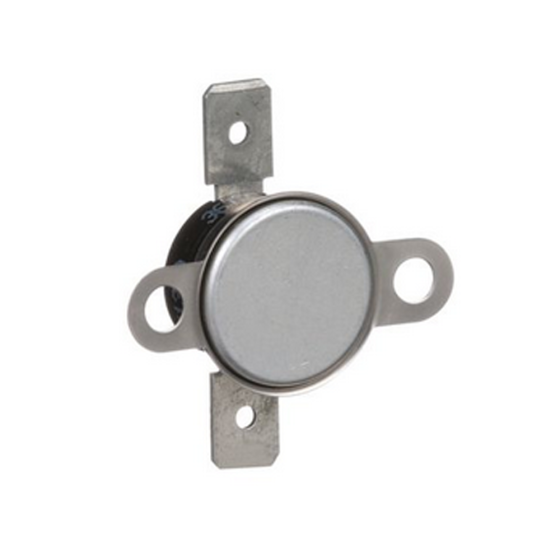

Fan Control Limit Switch 140F° Cut-in/120F° Cut-out
Item
3F01-140
FEATURES & BENEFITS
• Loose ring, stainless steel mounting brackets.
• Mounting holes match standard snap discs.
• Aluminum disc cup.
• Last three numbers indicate cut-in temperatures on fan controls and cut-out temperatures on limits.
• Typical Applications: Snap Disc Fan - Automatic Reset SPST
• Fixed Temperature Settings Cut-In: 140°F (60°C)
• Switch Action: Close on Rise
• Therm-O-Disc Type: 60T12
• Therm-O-Disc Style: 610049
• Agency: UL Recognized File #E19279, CSA Certified File Number LR77886/LR109556, VDE Lic. 118631
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.500000 |
