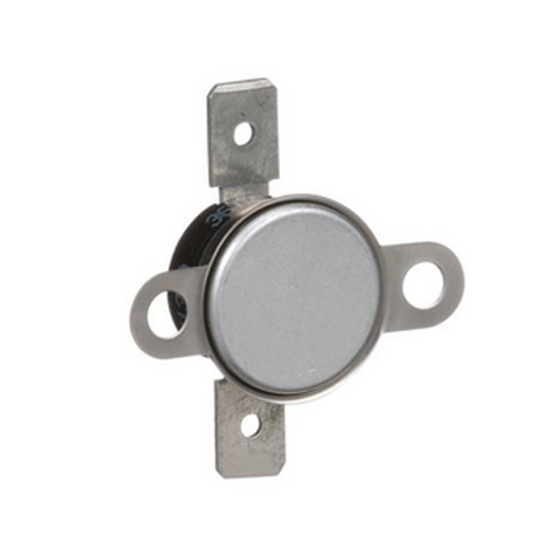

Fan Control Limit Switch 130F° Cut-in/170F° Cut-out
Item
3L01-170
FEATURES & BENEFITS
• Loose ring, stainless steel mounting brackets.
• Mounting holes match standard snap discs.
• Aluminum disc cup.
• Last three numbers indicate cut-in temperatures on fan controls and cut-out temperatures on limits.
• Typical Applications: Snap Disc Limit - Automatic Reset SPST
• Fixed Temperature Settings Cut-In: 130°F (54°C)
• Switch Action: Open on Rise
• Therm-O-Disc Type: 60T11
• Therm-O-Disc Style: 610012
• Agency: UL Recognized File #E19279, CSA Certified File Number LR77886/LR109556, VDE Lic. 118631
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.500000 |
