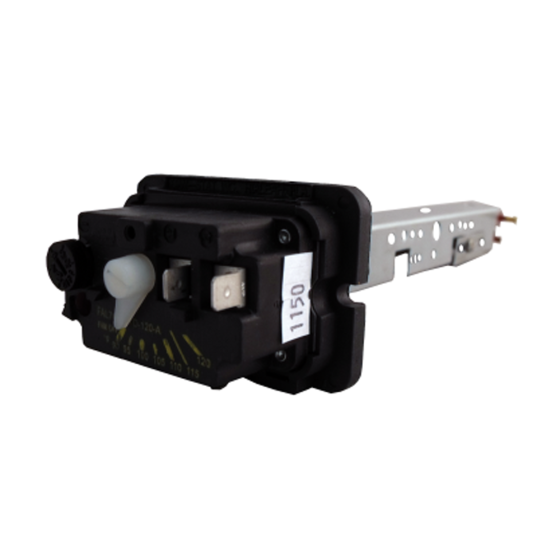

Camstat Fan & Limit Control 120/240Vac, 3"

APPLICATIONS

For replacing the exact OEM heating control components, Supco® offers the complete line of CAMSTAT® controls.

FEATURES & BENEFITS

• Adjustable FAN OFF setting
• Universal replacement in forced air heating furnaces
• Adjustable DIFFERENTIAL setting
• Adjustable furnace temperature limit to match existing setting
• UL® Recognized
• CSA® Approved
• Limit term(5 and 6 N.C.) LRA @ 120V: 26.4 LRA
• Limit term(5 and 6 N.C.) FLA @ 120V: 4.4 FLA
• Fan term (2 and 4 N.O.) LRA @ 240V: 48 LRA
• Fan term (2 and 4 N.O.) LRA @ 120V: 82.8 LRA
• Fan term (2 and 4 N.O.) FLA @ 240V: 8.0 FLA
• Fan term (2 and 4 N.O.) FLA @ 120V: 13.8 FLA
• Limit differential: 30 °F
• Limit temp.: 150 °F to 250 °F
• Fan off temp.: 90 °F to 120 °F
• Length: 3"

CROSS REFERENCE

• A-1® - FF558
