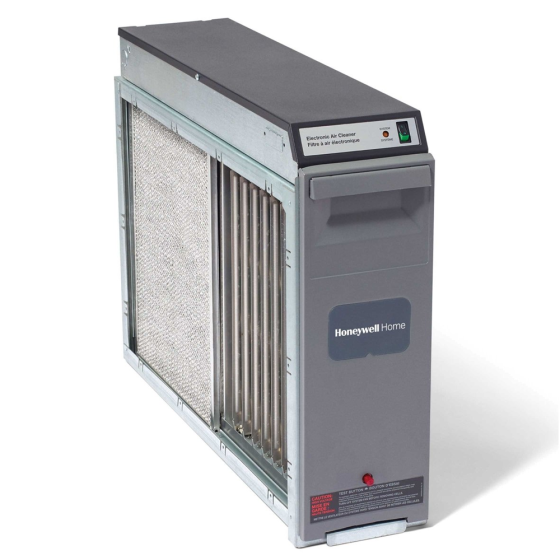

The F300 Electronic Air Cleaner optimizes efficiency with airflow capturing up to 98% of particles that pass through it. It operates with all gas, oil and electric forced warm air furnaces and AC systems, and is available in four sizes to fit most ducts.
PRODUCT DETAILS
• Media post-filter provides enhanced filtration on select models. • Solid state power supply is self-regulating and maintains peak efficiency during a wide range of cell dirt loading conditions. • Low-profile door with test button to check system operation. • Helps filter efficiency-robbing "gunk" before it coats critical system parts. • Very low pressure drop. • Exclusive 10-year Clean Coil Guarantee. • Rugged zinc-coated, roll-formed cabinet provides superior strength and corrosion protection. • Airflow Capacity (cfm): 1400 cfm MAX • Airflow Capacity (m³/hr): 2380 m³/hr MAX • Efficiency Standard: Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large particles, E3=3.0 to 10.0 microns. Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning • Fractional Efficiency: E1=81%, E2=93%, E3=99% • Electrical Ratings: 120 Vac, 0.4A max. • Replacement Media: 50000293-002 • Frequency: 60 Hz • Static Pressure Drop (in. w.c.): 0.26 at 500 FPM • Additional Features: Includes high air flow post filter to enhance filtration performance. • Approvals, Underwriters Laboratories Inc.: Listed: Report E30954
