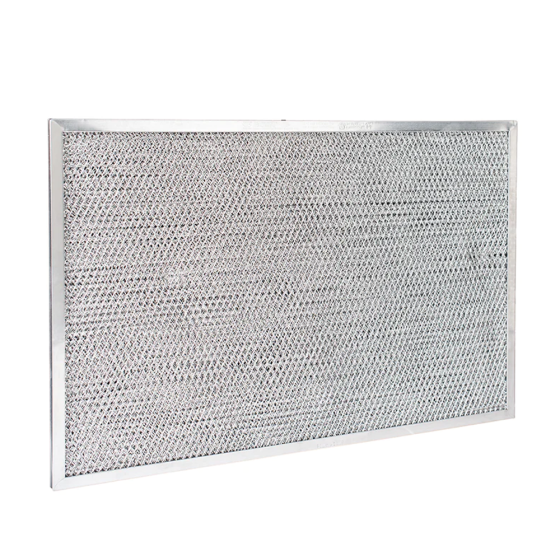

EZ Kleen Aluminum Mesh Air Filter 16" x 20" x 1"

APPLICATIONS

The EZ Kleen 1" mesh air filter and mist eliminator is constructed of slit and expanded aluminum media enclosed in an aluminum frame. This filter offers low resistance with good arrestance of airborne dust with rated velocity between 150-650 fpm. Compatible with all major OEM air handler systems. Meets UL Class 900 requirements. Choose your filter size from the drop-down menu above.

FEATURES & BENEFITS

• Rated Velocity: 150-650 FPM (0.76-3.31 m/s)
• Optimum Velocity: 350-520 FPM (1.78-2.64 m/s)
• Average Arrestance: 54% @ 350 fpm (1.78m/s) - 48% @ 520 fpm (2.64 m/s)
• Clean Resistance: 0.045” w.c. (0.011 kPa) @ 350 fpm (1.78 m/s) – 0.09” w.c. (0.023 kPa) @ 520 fpm (2.64 m/s)
• Dust Holding Capacity: 95 gms/ft² (1,023 gms/m²) @ 350 fpm (1.78 m/s) - 67 gms/ft² (721 gms/m²) @ 520 fpm (2.64 m/s)
• Filter Size: 16" x 20" x 1"
