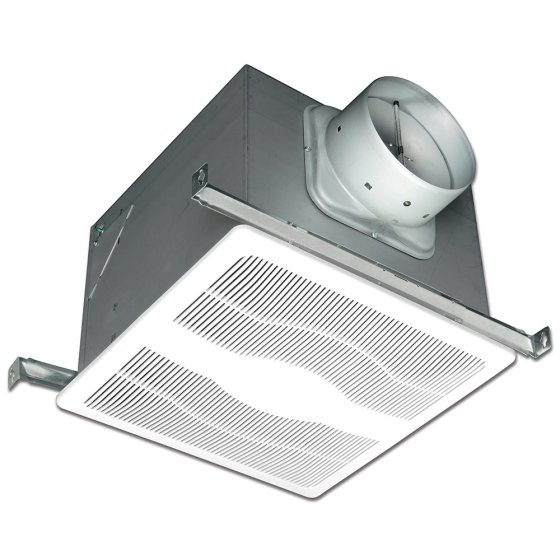

Air King® ENERGY STAR® Certified ECO Ventilation Fan 6 in. Round Duct, 130CFM, 0.3 Sones, 120Vac

APPLICATIONS

The Air King® E130S ENERGY STAR® Certified ECO Ventilation Fan provides barely audible sound levels, effective and efficient ventilation.

FEATURES & BENEFITS

• Can be used to comply with California Title 24 requirements
• Can be used to comply with the ventilation standards required by LEED for Homes
• ECO Ventilation Fans easily install using the included adjustable hanging brackets.
• UL listed for installation over a tub or shower on a GFCI circuit.
• Side access panel allows you to wire the fan from inside or outside the housing.
• HVI Certified performance.
• CFM @ .1 SP: 130
• Sones @ .1 SP: 0.3
• Boost Speed (CFM/Sones) @ .1 SP: 150 / 0.7
• Sound Level: Very Quiet
• Maximum Power Watts: 37.0
• Effective Ventilation Area: 130 to 160 sq. ft.
• ASHRAE 62.2 Ventilation: Whole House/ Local
• ENERGY STAR® certified: YES
• Can be used to comply with California Title 24 requirements: YES
• Grille: White, polymeric grill secured in place with torsion springs; easily removed, if necessary, dimensions – 14-1/4" x 14-1/4".
• Blower Wheel: Balanced polymeric dual inlet blower wheel secured in place using a hex nut.
• Motor: Enclosed 4 pole high efficiency, permanently split capacitor motor (PSC); life time lubrication, suitable for continuous operation.
• Motor bearings: Ball.
• Voltage Rating: 115/120 volts, 60 Hz.
• Fan Housing: 23 gauge galvanized steel housing. Overall dimensions: 12-7/8"x 12-3/4"x 9-7/8".
• Duct Collar: 6" round, zinc plated metal collar adapter. Gasketed, spring loaded aluminum backdraft damper.
• Electrical Connections: .5" electrical knockouts provided. Easy wiring access via either internal or external wiring compartment cover.
• Unit Mounting: The housing will mount through drywall thickness up to 3/4", with a rough-in opening of 13" x 12-7/8". The housing will mount either between 16" or 24" on center joists, using the 2 supplied housing mounting brackets. The housing mounting brackets can be adapted for overhead mounting (hardware not provided). The unit is provided with an optionally installed ceiling flange to ensure proper building infiltration rates are maintained and that no air leaks occur between the fan housing and ceiling cutout.

INCLUDES

• Ventilation Fan Housing
• Blower (motor)
• Hanger Bars for Mounting
• Damper and Duct Collar
• Grille
• User Manual
