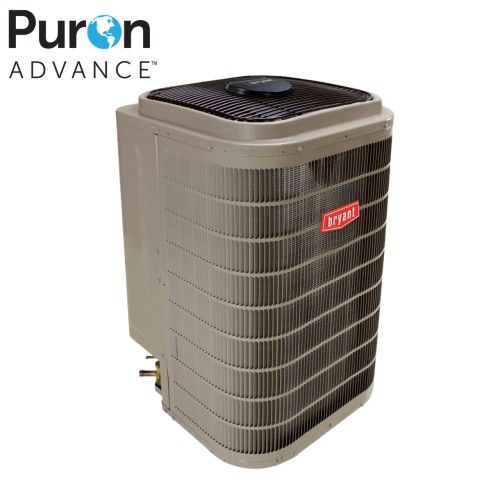

Evolution® R454B, Variable-Speed Air Conditioner, 208/1
Bryant’s 191VAN Evoution® Extreme is a variable speed cooling product providing up to 21 SEER2 cooling efficiency. Lower speed operation is available when needed in cooling, for enhanced comfort and dehumidification.
This product has been designed and manufactured to meet Energy Star® criteria for energy efficiency when matched with appropriate coil components. Refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Industry leading Features / Benefits
Energy Efficiency
• Up to 21 SEER2, 12 EER2
• Microtube technology™ refrigeration system
• Indoor air quality accessories available
Sound
• Sound level as low as 55 dBA in low speed
Comfort
• Variable speed compressor with capacity range from 25-100%
• Air cooled variable speed drive
– Evolution™ Connex™ System Control
– Energy Tracking capability with the Evolution™ Connex™System
Control and latest software version (Energy Tracking has the ability to monitor and estimate the energy consumption of your Evolution™ system.)
Reliability
• Non-ozone depleting, low global warming potential Puron Advance™ refrigerant
• Front-seating service valves
• High pressure switch
• Discharge and suction pressure transducer
• Filter drier (field installed)
• Internal stator heating function standard
Flexibility and Installation:
• Vertex™ Technology compatible
• 2 control wires to outdoor unit
• Minimum and maximum airflow adjustments
• Efficiency and comfort modes
Durability
DuraGuard™ Protection Package:
• Solid, durable sheet metal construction
• Steel louver coil guard
• Baked-on, complete outer coverage, powder paint
Applications
• Cooling mode operation up to 125°F (51.7°C) outdoor ambient temperature.
• Long-line - up to 200 feet (61.0 m) equivalent length, up to 100 feet (30.5 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
• Low ambient cooling down to 0°F (-17.8°C ) when enabled in Evolution™ Connex™ System Control.
