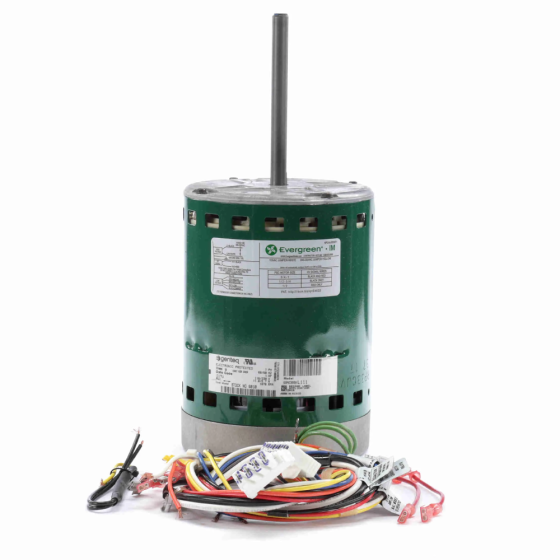

Evergreen® Direct Drive Blower Motor 1HP, 1070RPM, 115/230Vac, 11.0A, 40 °C, (ECM)
Item
6010
FEATURES
• Replaces competitive OEM's Direct-Drive Blower motors designed with a 6-pole 1075rpm rated PSC motor• 3 Multi-HP Models Available: 1/2HP (1/5-1/2) and 1HP rating (1/2-1)
• Dual voltage 115/230V single phase input, 50/60Hz
• 4 discrete speeds using 24VAC, plus automatic continuous fan speed, Efficiency up to 80%
• NEMA 48 Frame, UL and CSA recognized
• Automatic Dual Rotation
• Two Year Warranty
• Does not replace any existing ECM
FEATURES & BENEFITS
• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1
• RPM: 1070
• Rotation: Reversible
• Voltage: 115/230Vac
• Amperage: 11.0/6.7
• Capacitor: Not Required
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 4.92
Electrical | |
---|---|
Amps | 11 | Hertz | 60 | Voltage | 115/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 19 | Exterior Dimensions (D) (inches) | 17.000000 | Exterior Dimensions (W) (inches) | 9.000000 | Exterior Dimensions (H) (inches) | 9.000000 | Shipping Weight (lbs) | 19.000000 |
