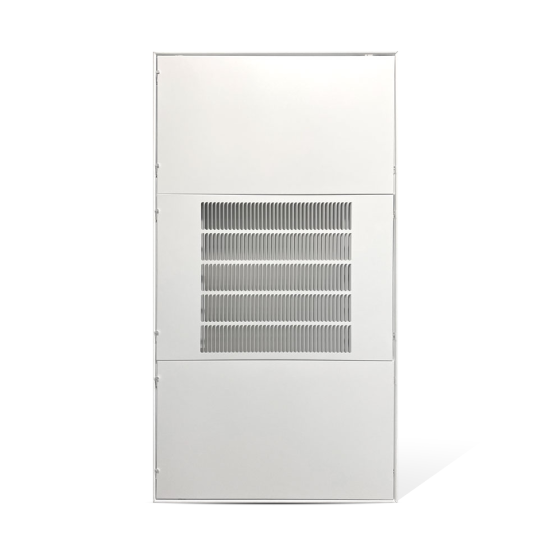

EAD-CAR1-44X29 Equipment Access Door 44 in. x 29 in. (Louvered)
Item
EAD-CAR1-44X29
APPLICATIONS
This access door is designed for the following non-cased Carrier fan coil units:
• FMU4Z1800AL
• FMU4Z2400AL
• FMU4X1800AL
• FMU4X2400AL
FEATURES & BENEFITS
• Nominal Size: 44 in. x 29 in.
• Three individually hinged access doors set in an outer mounting frame
• Hinges parallel to longest side of outer frame
• 1/2” spaced louvers stamped into middle access door
• Rust resistant pre-coat with durable powder finish
• Holds up to a 1” filter (not included) with filter retention tabs
• Soft White
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 44.000000 | Exterior Dimensions (W) (inches) | 29.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 7.000000 |
