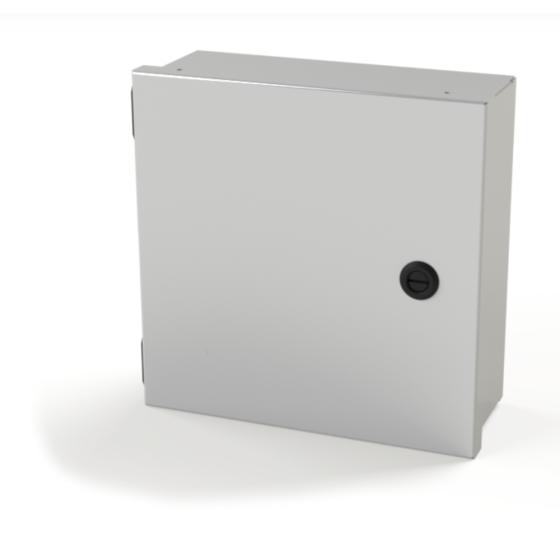

Enclosure 10X10X4 Nema 1

Item

SCE-10N1004LP

FEATURES

Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.

• 0.048 In., 0.063 In. & 0.075 In. carbon steel depending on enclosure size.

• Spot weld construction.

• 1/4-20 Standoffs provided for mounting optional panels.

• Doors open 180 degrees.

• Black quarter turn latches.

• Latches are opened or closed with a screwdriver.

• Ground stud on door.

• Mounting holes in back of enclosure.

• Subpanel mounting hardware.

• Butt Hinge – Black

• ANSI-61 gray powder coating inside and out.

• NEMA Type 1

• UL Listed Type 1

• CSA Type 1

• IEC 60529

• IP 30

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	9
Exterior Dimensions (D) (inches)	10.000000
Exterior Dimensions (W) (inches)	10.000000
Exterior Dimensions (H) (inches)	4.000000
Shipping Weight (lbs)	9.000000
