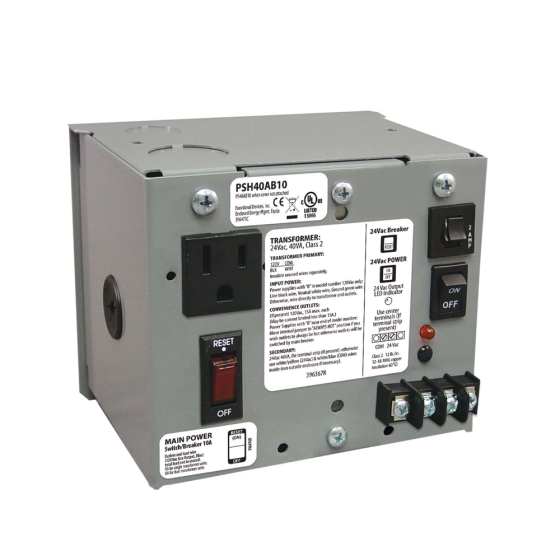

Enclosed Single 40Va 120v-24v
Item
PSH40AB10
FEATURES & BENEFITS
• Transformer: One 40 VA Split-Bobbin
• Over Current Protection: Circuit Breaker
• Frequency: 50/60 Hz
• 24 Vac ON/OFF: On / Off Switch & Breaker
• Main Breaker ON/OFF: Switch / Breaker (10 Amp) (Kills power to entire unit: Outlets, Aux. Output, & Transformer) Total Combined Output 9A
• Max. Ambient Temperature: 40° C
• Approvals: Class 2 (UL Approved UL5085-3), UL916,
• UL508, C-UL, CE, RoHS
• Dimensions: 4.500˝ H x 5.438˝ W x 4.500˝ D
• Origin: Made of US and non-US parts
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 10 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 10.000000 |
