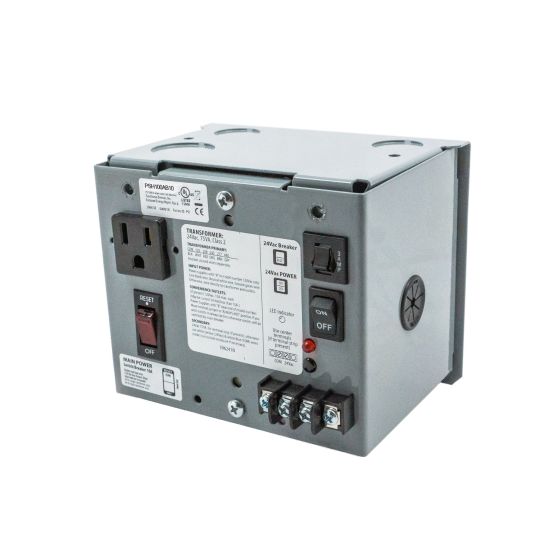

Enclosed Single 100VA, 120 Vac to 24 Vac, UL Class 2 Power Supply, 10 Amp Main Breaker

FEATURES

The PSH100AB10 serves as a compact and efficient power supply management device that supports applications requiring a reliable power source. This solution converts 120 VAC to 24 VAC, meeting the demand of many devices while ensuring compliance with UL Class 2 standards. We designed it with safety and reliability in mind.

100 VA Power Supply
Converts 120 VAC to 24 VAC.

10 Amp Breaker
Integrated into the component, offering an extra layer of safety to protect against overcurrent issues.

Sturdy Metal Enclosure
Provides durability and longevity.

SPECIFICATIONS

• Transformer: One 100 VA Split-Bobbin
• Over Current Protection: Circuit Breaker
• Frequency: 50/60 Hz
• 24 Vac ON/OFF: On / Off Switch & Breaker
• Main Breaker ON/OFF: Switch / Breaker (10 Amp)
• Temperature: 40° C
• Approvals: Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE, RoHS, Special
• Dimensions: 4.500˝ x 5.438˝ x 4.500˝
