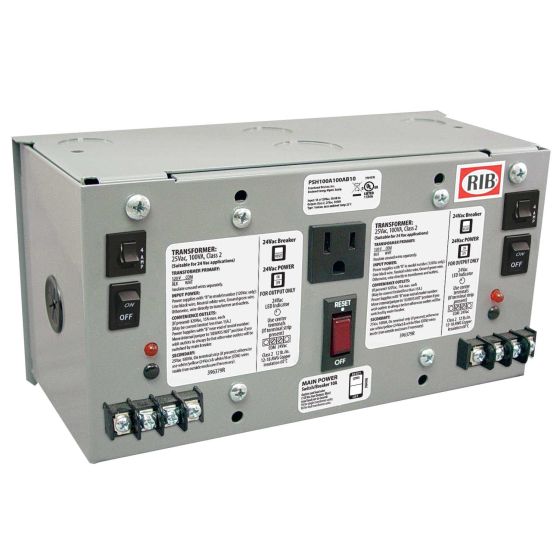

Enclosed Dual 100VA, 120 Vac to 24 Vac UL Class 2 Power Supply, 10 Amp Main Breaker

FEATURES

The PSH100A100AB10 Dual 100 VA power supply, a versatile unit designed for scenarios demanding reliable and consistent power delivery, serves as one of our most popular offerings.

This dual power supply unit efficiently converts 120 VAC to 24 VAC, offering twice the capacity with its pair of 100 VA outputs. It does all this while maintaining UL Class 2 compliance. Its integrated 10 Amp main breaker ensures safety and protection against overcurrent’s.

120 VAC to 24 VAC
Efficient conversion with minimal waste.

Dual 100VA Outputs
Offers added versatility for multiple use cases.

UL Class 2 Compliance
Ensures compliance and safety while providing environmental protection.

SPECIFICATIONS

• Transformer: Two 100 VA Split-Bobbin
• Over Current Protection: Circuit Breaker
• Frequency: 50/60 Hz
• 24 Vac ON/OFF: On / Off Switch & Breaker
• Main Breaker ON/OFF: Switch / Breaker (10 Amp)
• Temperature: 40° C
• Approvals: Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE, RoHS,
• Dimensions: 4.500˝ x 8.625˝ x 4.500˝
