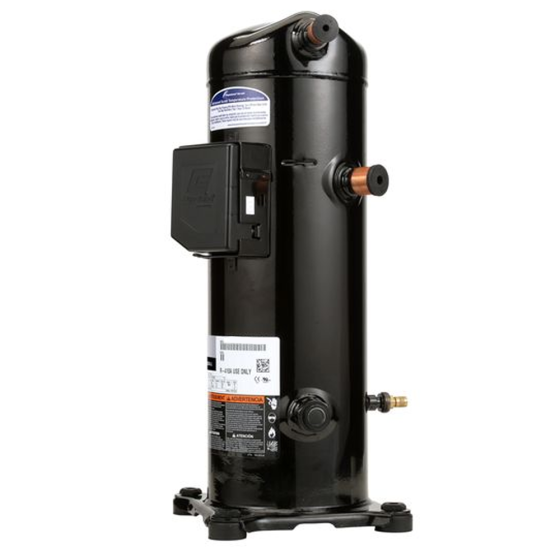

Copeland Hermetic Scroll Compressor R410A, 104,000BTU, 575Vac, Three Phase
Item
ZP104KCE-TFE-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 104,000
• Refrigerant: R410A
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 575Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 17.6
• LRA: 93.7
• RLA: 12.6
• Hertz: 60
• Suction Line Size: 1-1/8"
• Suction Line Height: 14.57"
• Discharge Line Size: 7/8"
• Discharge Line Height: 20.72"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | Voltage | 575 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 91 to 110kBTU | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 101 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 17.000000 | Exterior Dimensions (H) (inches) | 27.500000 | Shipping Weight (lbs) | 101.000000 |
