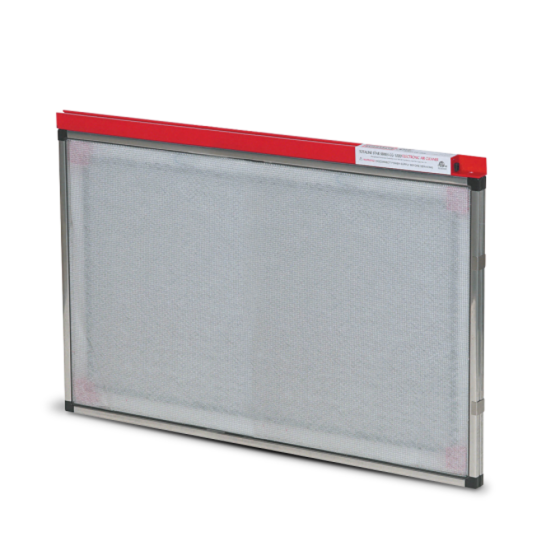

Totaline® Electronic Air Cleaner 24Vac, 18" x 24" x 1"

Item
P101-1824C
  • California Prop 65

APPLICATIONS

The Totaline® Series CG1000 electronic air cleaner is designed to be used in place of a standard, 1-in. filter in the ductwork of a house or building. The electronic air cleaner is normally installed in the filter rack of the furnace or air handler. It helps to remove pollens, allergens, bacteria, dust mites, smoke, and chemicals from the filtered air. A 24-VAC at 2Va power supply is required.

The Totaline® Series CG1000 is a safe and simple electronic process, operated with 24 volts! It works by creating a polarized (electric) charge on the media pads. The electric charge enables the media pads to capture and remove airborne particles as small as .01 microns.

FEATURES & BENEFITS

• Voltage range: 18V min. to 30V max.
• Consumption: Max 2.5 watts.
• Amp. Draw: Max 0.1A
• Efficiency: Down to 1 micron
• Pressure Drop: 0.18 in W.G.
• Actual Dimensions: 17-5/8” x 23-5/8”
• MERV 10 @ 295 fpm
• Produces no hazardous ozone
• Produces no positive ions
• Fully electronic, highly reliable
• Easy to maintain
• Increases equipment efficiency
• Satisfaction guaranteed
• 5 year warranty
• UL and CSA Certified
• Media Replacement: P101-1824M (Typically, the fiberglass pads will need to be replaced every 3 to 6 months.)

Electrical
Voltage 24
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2
Exterior Dimensions (D) (inches) 18.000000
Exterior Dimensions (W) (inches) 1.000000
Exterior Dimensions (H) (inches) 24.000000
Shipping Weight (lbs) 2.000000
Specification
Filter Size 18" x 24"
Thickness 1 in.
