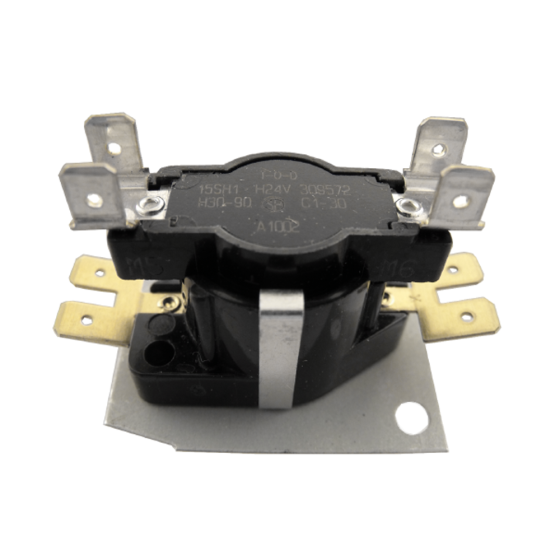

Supco® Electric Heat Sequencer 24Vac
Item
Q102
PRODUCT DETAILS
Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 30-90 seconds, and off at 1-30 seconds.
FEATURES & BENEFITS
• UL® and CSA® approved.
• 24 volt control circuit.
• Five second delay between all subsequent stages, unless they function together.
• Off: 1 - 30 Seconds
• On: 30 - 90 Seconds
CROSS REFERENCE
• GEM - GS102
• GLOBAL - 24CZ-2
• MARS - 33242 & 33842
• WATSCO - TDR15
• KLIXON - 6000AONI-97
• WHITE RODGERS - 24A34-2
• ROBERTSHAW - 611-242
• INTERSTATE ELECTRIC - IES24A34-2
• ZETTLER - ZC24A34-2
• CARRIER - 40CF680020
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.100000 |
