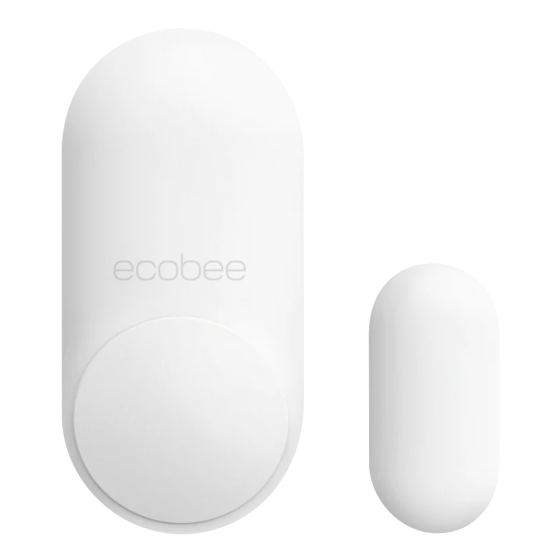

ecobee SmartSensor for Doors & Windows (2pk)
FEATURES & BENEFITS
Get instant alerts when doors and windows are opened. Works with ecobee Smart Security to secure the home by detecting motion when the system is armed.
FEATURES & BENEFITS
DimensionsSensor Base
Height: 60 mm (2.36 in.)
Width: 29 mm (1.14 in.)
Depth: 21 mm (0.8 in.)
Magnet
Height: 33 mm (1.3 in.)
Width: 16 mm (0.63 in.)
Depth: 12 mm (0.47 in.)
Operating environment
For indoor use only
Compatibility
SmartSensor works with the following devices to support ecobee home monitoring (subscription required):
Smart Thermostat Premium
Smart Thermostat Enhanced
SmartCamera with voice control
SmartThermostat with voice control
ecobee4
ecobee3 lite
ecobee3
Sensors
Occupancy sensor: detects motion when home is armed
Contact sensor: detects when doors and windows are opened and closed.
Range & connectivity
Place sensors up to 60 ft from ecobee thermostat or camera.
915MHz
Occupancy sensor angle & detection range
120° horizontal
16 ft (5 m) when placed at a height of 6.5 ft (2 m) on a door
Contact sensor detection range
0.75 to 1.25 in. (19 to 31.75 mm)
Powering method
CR2477 battery
Battery life
Up to 3 years
Mounting
Adhesive backing
Operating temperature & humidity
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 5% to 95% RH (non-condensing)
Storage temperature & humidity
Temperature: −31° to 113°F (−35° to 45°C)
Humidity: 5% to 95% RH (non-condensing)
Warranty
3-year limited warranty
What’s in the box
2 occupancy and contact sensor bases with adhesive backs
2 magnets with adhesive backs
Batteries included
Quick-start guide
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 5.000000 |
