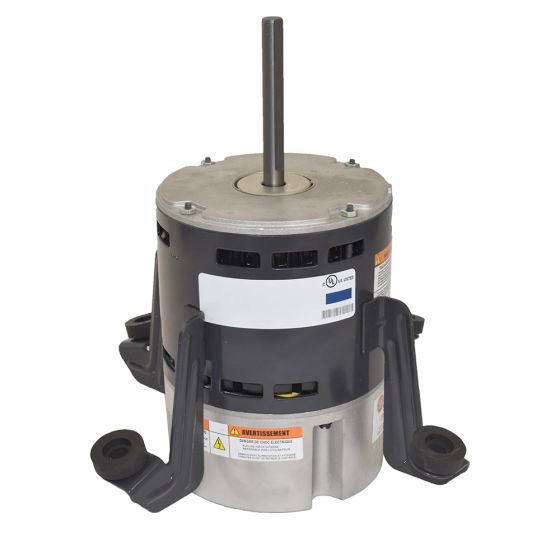

Direct Drive Blower Motor 1HP, 1050RPM, 115Vac, 11.7A, (ECM)
Item
HD52MM122
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1
• RPM: 1050
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 115Vac
• Amperage: 11.7
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48Y
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 3.92
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48Y | Motor HP | 1 | Motor Type | ECM | Rotation | CCW LE | RPM | 1050 | Shaft Diameter | 0.50 | Shaft Length | 3.92 |
| Electrical | |
|---|---|
| Amps | 11.7 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 10.500000 | Exterior Dimensions (W) (inches) | 10.500000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 20.000000 |
