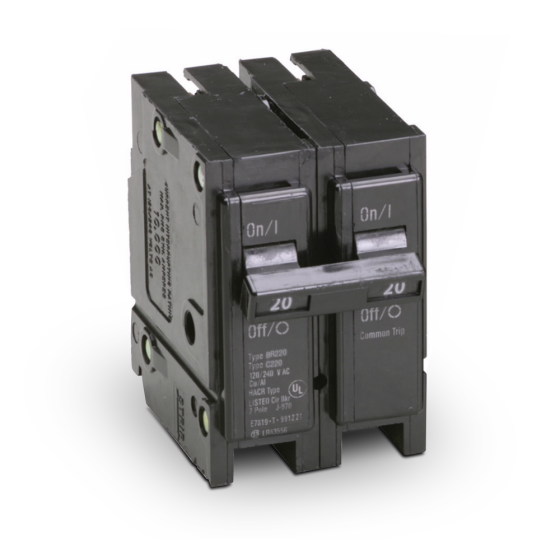

Eaton Type BR Circuit Breaker 20a, 2-Pole, 120/240Vac
Item
BR220
FEATURES & BENEFITS
• Federal Specifications Classification W-C375
• UL 489
• Interrupt rating: 10 kAIC
• Type: Type BR 1-Inch plug-on circuit breaker
• Wire size: #14-3 AWG Cu/Al
• Circuit breaker type: BR
• Used with: Type BR Load centers
• Main circuit breaker: BR
• Mounting Method: Plug-on
• Voltage rating: 120/240 V
• Amperage Rating: 20 A
• Trip Type: Common breaker trip
• Number of poles: Two-pole
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 20 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 0.500000 |
