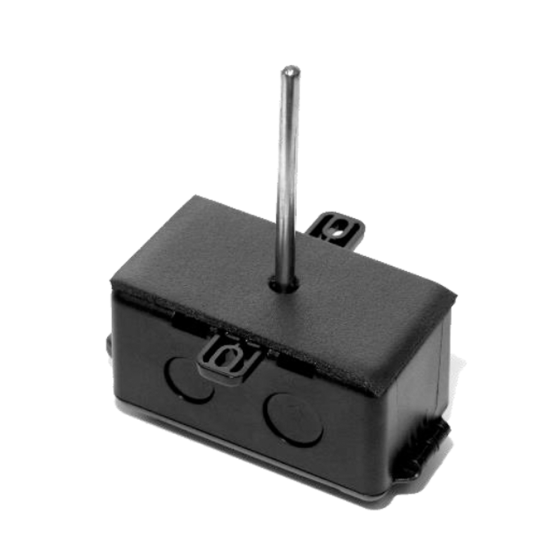

Duct Temp 12-in with Box

APPLICATIONS

The Carrier Thermistor Duct Series features a stainless steel probe with two, 22 AWG Etched PTFE colored lead wires to differentiate the different sensor types. The sensors in this series are manufactured using Carrier’s proved double encapsulation process to eliminate the effects of moisture on the sensors and increased response times from our high quality, thermally conductive epoxy. The duct sensor is designed to be used in smaller duct applications and includes an insulation pad for sealing your duct and dampening vibration. The sensor length should be determined by the width or diameter of your duct such that the tip of the probe reaches the approximate center of the duct. Our standard enclosure options are the galvanized enclosure “-GD” or plastic duct enclosure with hinged cover “-PB”. On larger ducts, you may want to refer to our Rigid or Bendable Copper Averaging sensor for increased sensing points and better temperature control. This series can be ordered with optional NEMA/IP rated weather proof enclosures and NIST.

FEATURES & BENEFITS

• Sensor Type | Sensor Curve: Thermistor | Non-Linear, NTC (Negative Temperature Coefficient)
• Number Sensing Points | Number Wires: One | Two (Non-Polarity Sensitive)
• Sensor Output @ 25ºC (77ºF): 10K Ohms nominal
• Sensor Accuracy 0-70ºC (32-158ºF): +/-0.2ºC (+/-0.36ºF)
• Power Dissipation Constant: 3 mW/ºC
• Response Time (63% Step Change): 10 Seconds nominal
• Sensor Operating Temperature Range: -40ºC (-40ºF) to 150ºC (302ºF)
• Enclosure Specifications (Temperature, Material, Flammability, NEMA/IP Ratings): ABS Plastic, UL94-HB, -30 to 90ºC (-22 to 194ºF), Plenum Rated
• Storage Temperature Range: -40 to 85ºC (-40 to 185ºF)
• Operating Humidity Range: 10 to 95% RH, non-condensing
• Probe Material | Probe Diameter: 304 Stainless Steel | 0.250” (6.35mm)
• Fitting Material | Flammability Rating: Polyamide 66 (High Performance Nylon) | UL94-HB
• Foam Pad Material | Flammability Rating: Neoprene/EPDM/SBR Polymer | UL94-HBF; FMVSS-302; MIL-R-6130C
• Lead Length | Conductor Size: 4” and 8” Probes: 14” (35.6 cm) | 12” Probes: 24” (61 cm) | 22 AWG (0.65 mm)
• Lead Wire Insulation | Wire Rating: Etched Teflon (PTFE) Colored Leads | Mil Spec 16878/4 Type E)
• Conductor Material: Silver Plated Copper
• Product Dimensions | Product Weight: 0.28 lbs. (0.127 kg)
• Agency Approvals: CE, RoHS2, WEEE
