APPLICATIONS

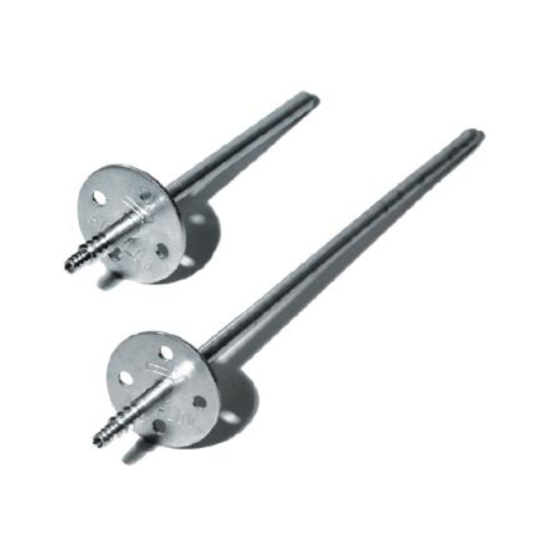

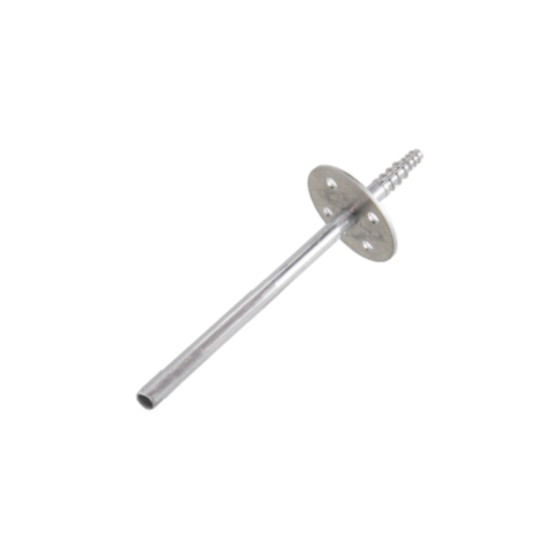

The NSA-SPT Series Static Pitot Tubes are aluminum static pressure (aspiration) probes used to monitor the static pressure in an HVAC duct or equipment application. The static pressure probe should be mounted approximately 5 to 8 duct diameters downstream from elbows, obstructions, or large change in duct area to reduce the amount of turbulence that will affect your readings.
FEATURES & BENEFITS
• Tubing Connection | Tubing Size: 45º Barbed Type (6 Places), accepts 1/8” through 1/4” ID flexible plastic tubing
• Probe Insertion Length & Sensing Points: (88.9 mm) | Single Point
• Tube Mounting Direction: Tip opens parallel to the air stream
• Static Tube Mounting Angle: Perpendicular to the duct (90 Degrees +/- 3 Degrees)
• Mounting Flange (Diameter): 1.50” (38.1 mm)
• Measurement Probe Hole Size (Diameter): 1/4" (6.35mm)
• Mounting Holes (Diameter): 3/16” (4.76 mm)
• Material: Aluminum
• Storage & Operating Temperature Range: -40 to 185ºF (-40 to 85ºC)
• Operating Humidity Range: 0 to 90% RH non-condensing
• Weight: NSA-SPT-3.5: 0.022 lbs (10g) | NSA-SPT-8.0: 0.034 lbs (15.4g)
• Agency Approvals: RoHS2, WEEE, Reach
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 1.000000 |
