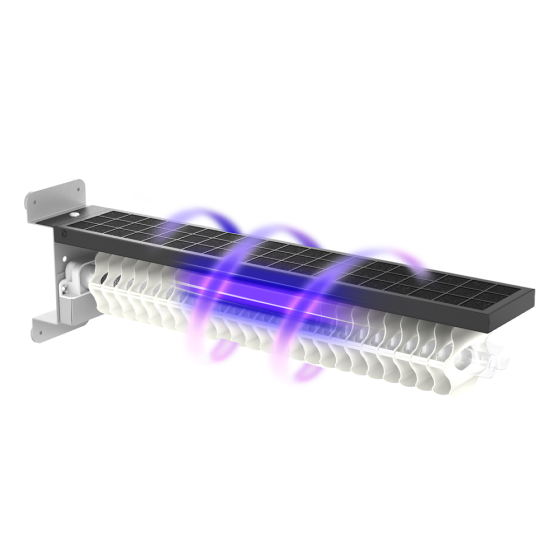

Totaline® Dual UV Germicidal Purification Lamp with Carbon Matrix & PCO 16", 24/120V, 36W
FEATURES
The Totaline® Ultra Violet System with Carbon Matrix & PCO is a unique indoor air treatment and odor absorption system. It utilizes multiple processes to help reduce airborne microorganisms, odors, gases and Volatile Organic Compounds (VOC’s). This combination works on your air in three distinct ways. UVC Germicidal works on airborne bacteria, viruses & molds including coil treatment. The Carbon Matrix cells work to absorb odors & VOC’s in combination with, the PCO Spiroplate Sterilizer oxidation system. This unique combination helps enhance air cleansing throughout the indoor living space. This technology is ozone free for a natural 3 way air cleansing process.
The Totaline® Ultra Violet system features 9000 hour UVC Germicidal lamps & replaceable matrix media’s. Periodic maintenance & replacement is recommended.
Dual Voltage 24/120V operationIdeal for air handlers, fan coil or packaged units
Dual 254 Nm, 36 watt lamps
Twice the power versus single lamp 18W
Tri-process air treatment
UVGI, Carbon absorptive matrix & PCO oxidation
Replaceable matrix & PCO
Ensures long term performance
Patented spiroplate sterilizer
Provides for coil irradiation and air treatment
Magnetic mounting base
Easy installation & servicing
Ozone free
Optimized for safety
SPECIFICATIONS
• Electrical Power: 24/120V• Lamp Length: 16” (15.25”)
• Lamp Life (Hours): 9,000
• Lamp Wattage: Dual 36 Watt
• Lamp Type: 254 Nm
• UV Output (uw/cm @ 2.5’): 204
• Amp Draw: 1.5/0.35
• Replacement UV Lamp: UV2-FC-16-LP
INCLUDES
• Patented SpiroPlate Sterilizer• Carbon Matrix Tray
• magnetic mounting base
• 24 volt ballast
• 6 foot UV resistant power cord and all hardware
Electrical | |
---|---|
Voltage | 24/120 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 21.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 3.000000 |
Specification | |
---|---|
Reduces VOCs | Yes | Produces Ions | No |
