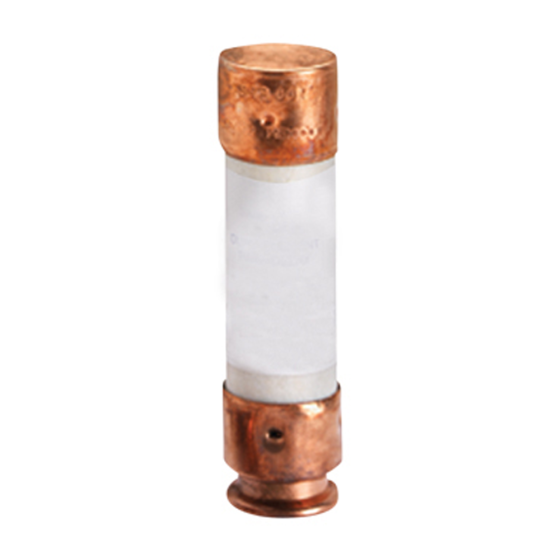

Dual Element Time-Delay Fuse 50a, 250Vac (Class RK5)

Item

81042

FEATURES

• Provides branch circuit protection

• Non-renewable fuse that conforms to UL

• General purpose applications, Lighting Heating

• Non-inductive loads

• Replaces: TR, ECNR, FRNR, FLNR

• Diameter (in.): 0.8125

• Type: Time-Delay

• Series: Class RK5

• Voltage 250VAC/160VDC

• Fuse Amps:50

• Length (in.): 2

• Indicating: No

• Element: Dual

• Body Material: Polyester

• Body Style: Ferrule

• Standards: UL/CSA

• Interrupt Rating: 200kA IR AC 20kA IR DC

Safety Standards
California Prop 65	Yes

Specification
Amp Rating	50

Weights and Dimensions
Operating Weight (lbs)	.1
Exterior Dimensions (D) (inches)	2.000000
Exterior Dimensions (W) (inches)	1.000000
Exterior Dimensions (H) (inches)	1.000000
Shipping Weight (lbs)	0.100000
